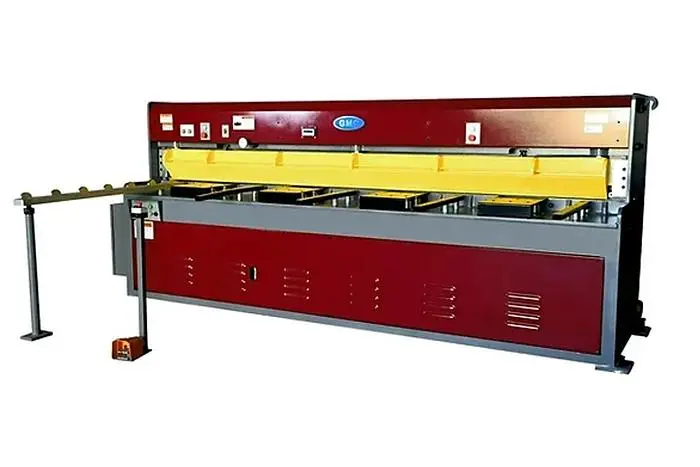

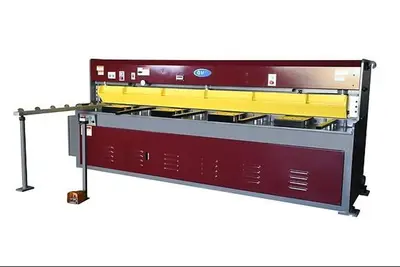

Product: Shears, Hydraulic
Overall Cutting Length: 120"
Maximum Cutting Capacity: 10 Ga. Mild Steel, 14 Ga. Stainless Steel, 1/4" Soft Aluminum
Blade Length: 121"
Strokes Per Minute: 10-15
Rake of Upper Blade: 2 degrees
Working Height: 34.5""
Throat: 18"
Main Motor: 7.5 HP, 3 Phase, 220V/35A (440V/18A Optional)
Backgauge Motor: 1 HP
Overall Dimensions: 178" x 67" x 65"
Weight (approx.): 8,850 lbs
Standard Features:
· ISO 9001 certified
· Taiwan machines

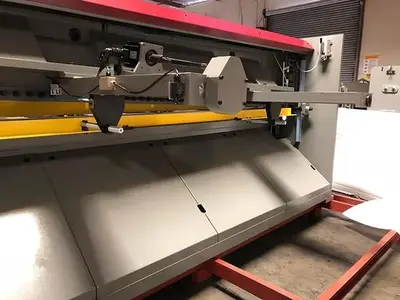

· HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro
· adjustment 0.004” , inch/mm digital display
· Quick Change Blade Gap Adjustment (BGA), with gap dial
· Shadow line for accurate straight cutting

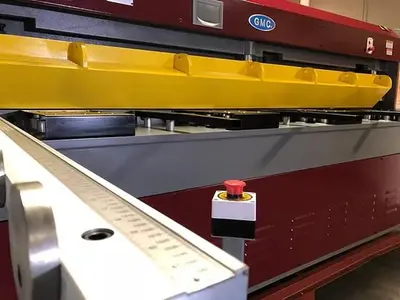

· 60” squaring arm with inlaid inch/metric dual scale
· CE standard “OMERO” electric control system
· Meet OSHA safety standard code
· Adjustable cutting length and stroke
· Ball transfer plates on worktable for easy loading workpiece
· Well balanced and sturdy all steel machine frame
· German made Hydraulic logic system centrally located and quiet

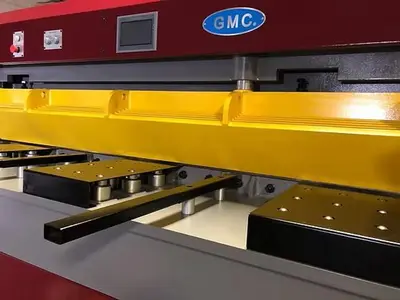

· Hydraulic hold-downs with anti-mar neoprene
· Shear blades are high grade carbon/chrome alloy steel and hardened
· to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade

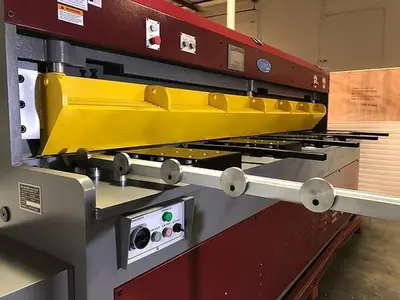

· Full length viewable safety finger guard to protect operator from cutting hazard
· Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
· Hydraulic, electrical overload protection
· Compact operator control panel
· All motors are overload protected & low voltage control system
· Jog or continuous auto cycle cutting operation modes
· One year industrial warranty for parts
Standard Equipment:
· HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro
· adjustment 0.004” , inch/mm digital display
· 1 each 60” squaring arm with inlaid inch/metric dual scale
· Quick change blade gap adjustment (BGA)
· Shadow line for accurate straight cutting
· Material support and drop back chuter
· Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
· 2 each 24” front support arms
· Hydraulic hold-downs with anti-mar neoprene
· Full length viewable finger guar
· Removable safety foot pedal
· Tool box
