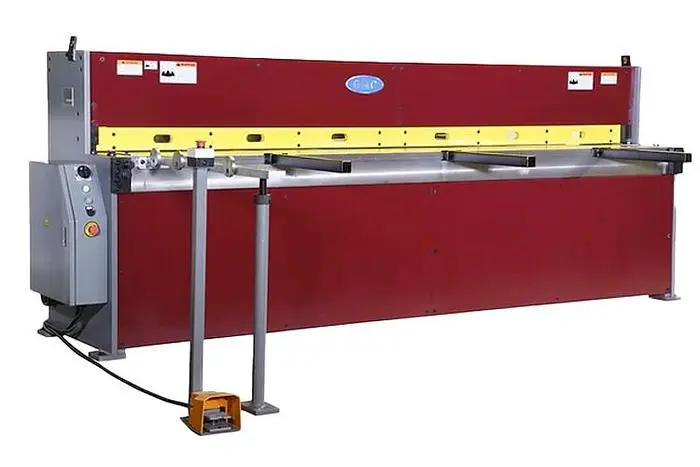

NEW GMC MACHINE TOOLS HS-0810MD

Product: Shears, Hydraulic
Overall Cutting Length: 96"
Maximum Cutting Capacity: Mild Steel 8' x 10Ga. / Stainless Steel 8' x 14Ga. / Soft Aluminum 8'x1/4"
Minimum Capacity: 24 Ga.
Blade Length: 8' 2"
Strokes Per Minute: 14-18
Throat: 16"
Working Height: 30.5"
Front Support Arm: 24"
Back Gauge Range: 26"
Rake of Upper Blade: 1.5 degrees
Oil Tank Capacity: 26 Gallons
Main Motor: 7-1/2 HP Prewired: 220V/3-Phase (Optional: 440V 3-Phase)
Overall Dimensions: 118 x 35 x 52"H
Weight (approx.): 5650 lbs.

Standard Features:
Premium Taiwan Manufacturing: Crafted with precision and quality, these machines are manufactured in Taiwan, renowned for their excellence in machinery production.
ISO 9001 Certification
HD All Steel Construction
German Logic Quiet Rexroth Hydraulic System
Adjustable Stroke: Tailor your cutting operations with adjustable stroke settings, ranging from 16 to 20 strokes per minute, allowing flexibility to match the requirements of your specific projects.
60" Long Squaring Arm
Spring Hold-Downs, ensuring secure material clamping and preventing slippage during the cutting process.
High-Grade Carbon/Chrome Alloy Steel Blades
Full-Length with Full View Finger Guard
Front Supports and (2) Side Gauges: Achieve precise positioning and consistent cuts with the front supports and two side gauges, providing additional stability and accuracy.
Safety Type Foot Pedal Control
Jog, Single Continuous Auto Operation Modes
One-Year Parts Warranty
Standard Equipment:
26” manual back gauge with inch/metric dual scale & one side operated hand wheel
·60” long squaring arm with inch / mm scale
·2 each 24” front support arms
·2 each 14” Side gauges with inlaid inch/metric dual scale
·Spring independent hold-downs
Full length finger guard
Removable safety foot pedal control
One set of blades
