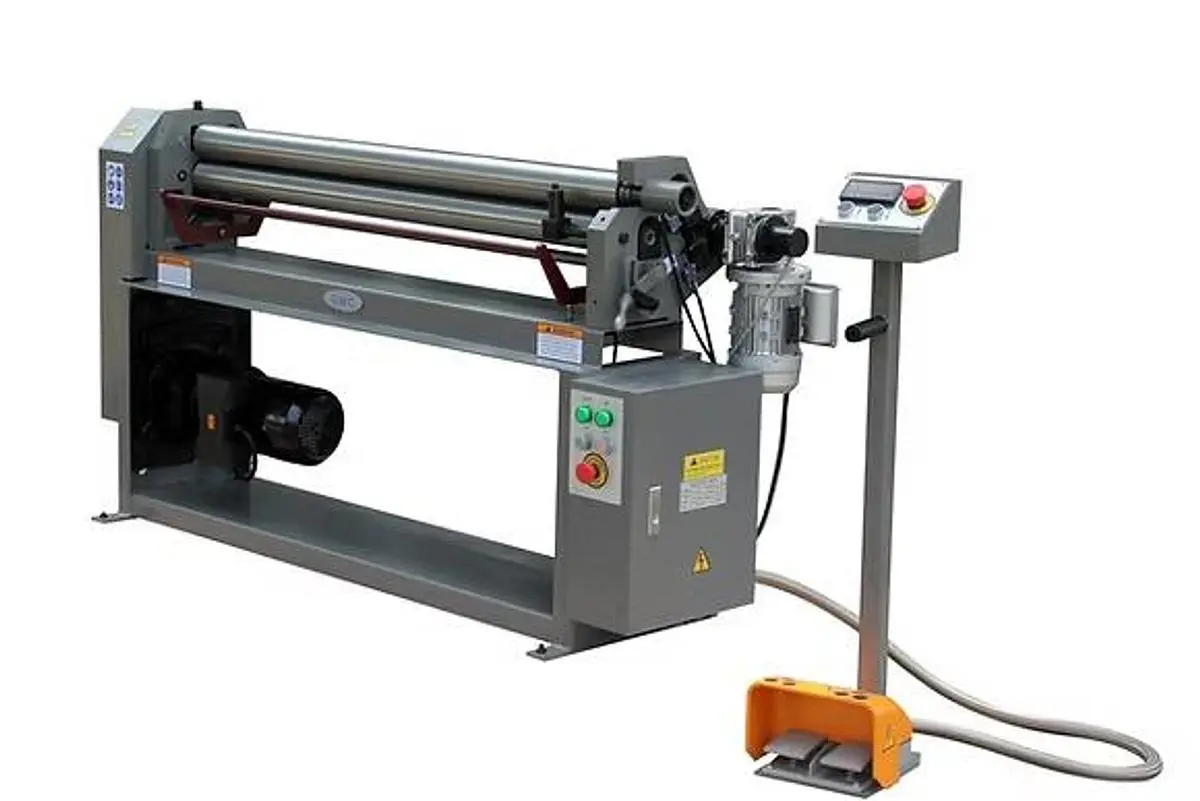

Product: Slip Roll
Rolling Capacity: 50" x14 ga (Mild Steel), 50" x 18 ga (SS), 50" x 10 ga (soft aluminum)
Rolls Size: 50" x 3"
Minimum Thickness Capacity: 26 ga.
Min. Roll Bending Dia. Capacity: 3.5"
Rolls Speed: 201" / minute
Rolls Opening: 1/4"
Groove Sizes: 5/16", 3/8", 1/2"
Main Motor: 2 HP, 220V or 440V, Single Phase
Weight (approx): 985 Lbs.
Machine Dimensions: 68 x 32x 49"H
Included Equipment:
Cone attachment
Electrical cabinet
Removable safety foot pedal
Standard Features:
ISO 9001 certified
Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
One handle to control pinch roll up/down, more convenient and efficiency
Heavy welded all steel construction for maximum rigidity
Silence electrical motor

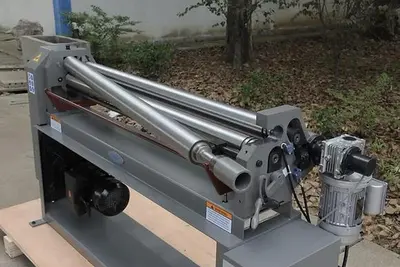

Quick release top roller
Two rolls are driven
Precision ground rollers
1/4” roll opening
All three rolls are made of high grade alloy steel, hardened up to 50 HRC
All rolls run forward and reverse
Safety type removable foot pedal

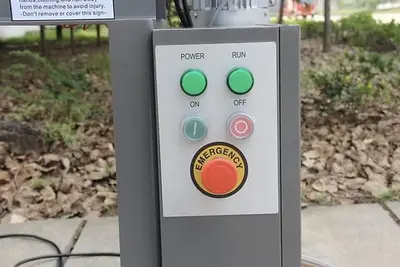

Overload protection and disconnect switch
One year warranty for parts
