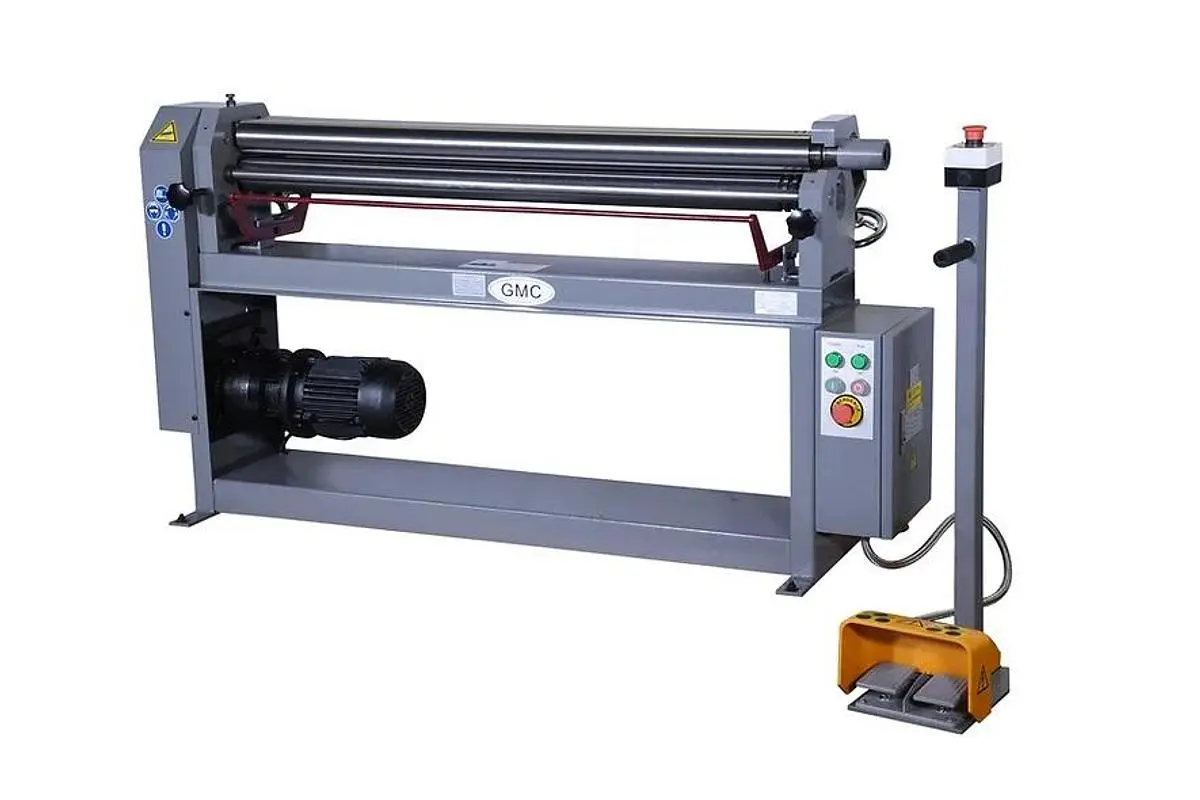

Product: Slip Roll
Rolling Capacity: 50" x16 ga (Mild Steel), 50" x 20 ga (SS), 50" x 11 Ga (Soft Aluminum)
Minimum Thickness Capacity: 50" x 26 ga

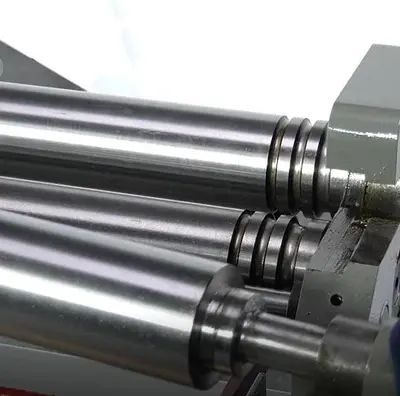

Rolls Size: 50" x 3"
Minimum Roll Bending Diameter Capacity: 3.5"
Rolls Speed: 201" / minute
Rolls Opening: 1/4"
Groove Sizes: 5/16", 3/8", 1/2"
Main Motor: 1.5 HP, 220V or 440V, Single Phase
Weight (approx): 837 Lbs.
Machine Dimensions: 68 x 28 x 47"H
Standard Included Equipment:
Cone attachment
Electrical cabinet
Removable safety foot pedal
Standard Features:
ISO 9001 certified
One handle for pinch roll clamping
One handwheel for bending roll up/down
Cone attachment to make various size cone parts
Heavy welded all steel construction for maximum rigidity
Silence electrical motor
Quick release top roller
Two rolls are driven
Precision ground rollers
1” roll opening
All three rolls are made of high grade alloy steel, hardened
All rolls run forward and reverse
Safety type removable foot pedal
Overload protection and disconnect switch
One year warranty for parts
