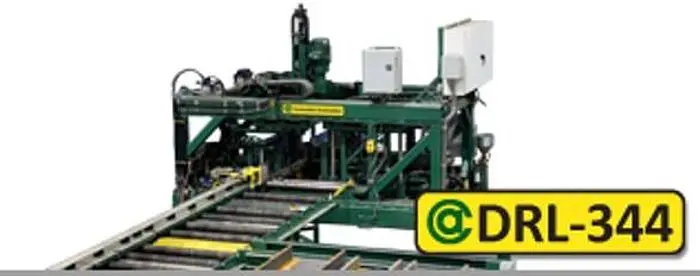

New Controlled Automation DRL-344 3-Spindle Drill Line

Delivery:
Stock, Subject to Prior Sale
Terms:
Net before Shipment
F.O.B.:
Bauxite, Arkansas
The DRL-344 is the flagship of high speed production drilling. Strength and speed come together in the DRL-344 to deliver unmatched productivity.
Equipped with three heavy duty 20 hp spindles, this machine uses high performance spade and carbide tipped drills to good advantage, boosting your tons per hour.
There is no waiting. Independent movement of the spindles in all axes allows each spindle to immediately move to its next hole without waiting for the other spindles to finish.
PRICE AND SPECS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SMF CAN OFFER FINANCING OPTIONS FOR YOUR PURCHASE, ASK YOUR SALESMAN FOR DETAILS. IF MACHINE SHIPS FORM LITTLE ROCK, AR ADDITIONAL FREIGHT CHARGES WILL APPLY.

Frame structure: Tubular steel
Approximate machine weight: 38,000 lbs
Machine width: 102-1/4"
Machine depth: 122"
Machine height: crane clearance: 130"
Roller height minimum: 24"
Roller height maximum: 44"
Maximum material width: 44”
Minimum material width: 4”
Maximum material weight: 1,000 lb/ft
Maximum hole size: 1-7/8” with 15hp motors or 2-1/4” with 20hp motors
Maximum flange height: 18”
