Delivery:
Stock, Subject to Prior Sale
Terms:
Net before Shipment
F.O.B.:
Arkansas
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

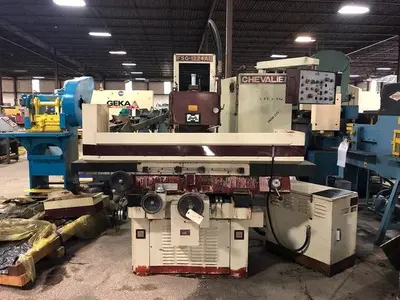

Table size (in./w x l): 11-3/4 x 23-5/8
Grinding capacity (in./w x l): 12 x 24
Maximum table workload without magnetic
chuck capacity (lbs.): 690
Maximum table workload with magnetic
chuck capacity (lbs.): 924
Grinding wheel size,
diameter x width x hole (in.): 14 x 2 x 5
Standard chuck size (in./w x l)/: 11-3/4 x 23-5/8
Table surface to spindle center distance (in.): 24-7/16
Longitudinal movement manual
traverse length (in.): 27-1/2
Traverse length (in.): 25-5/8
Longitudinal movement table speed range,
infinitely variable (fpm): 16 - 82
Cross movement rapid traverse rate (ipm): 12
Cross movement automatic
increment traverse range (in.): 1/8 - 1-1/4
Cross movement manual
traverse length(in.): 12
Cross movement handwheel
per revolution (in.): 0.25
Cross movement handwheel
per graduation (in.): .0025
Cross movement microfeed handwheel
per revolution (in.): .005
Cross movement microfeed handwheel
per graduation (in.): .00005
Vertical movement rapid traverse rate (ipm): 25
Vertical movement automatic
downfeed traverse range (in.): .00005 - .002
Longitudinal movement parallelism
accuracy (in.): 0.00016
Cross movement parallelism accuracy
(in.): 0.00016
Spindle parallel to work table
accuracy(in.): 0.0002
Wheel spindle run-out accuracy (in.): 0.00006
Grinding wheel spindle speed (rpm): 1,750
Grinding spindle motor: 5 HP, 220V/440V/3 Phase/60 Hz.,
Prewired: 220V
Hydraulic system motor: 1 HP
Crossfeed drive motor: 1/6 HP
Elevating ac servo drive motor: 1.33 HP
Floor space dimensions (in./l x w x h): 116 x 59 x 81-7/8
Net weight (lbs.): 4,849
