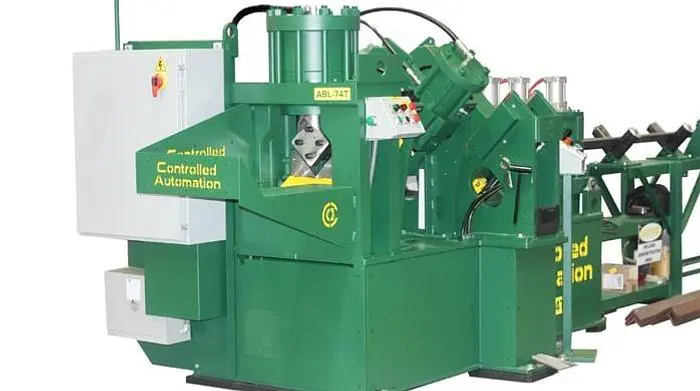

High volume angle production can be achieved without “drops” in your material, even on our entry-level ABL-74T angle line.
This high speed clip machine offers what few others do at higher prices: ZERO kerf, single-cut shear, and punching on both legs.
With our 6″ x6″ x 1/2″ capacity single-cut shear, you do not have a material loss (slug) for each shear process – saving you money every time you cut.
For affordable tooling, the ABL-74T uses inexpensive punches and dies from Cleveland Punch & Die which last longer and process much faster than more expensive drill tooling.
The ABL-74T uses all of your material right up to the last inch without relying on a measuring system that does not feed to the shear. Our ABL-74T is made with quality and pride for years of production and years of profit.
PRICE AND SPECS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SMF CAN OFFER FINANCING OPTIONS FOR YOUR PURCHASE, ASK YOUR SALESMAN FOR DETAILS. IF MACHINE SHIPS FORM LITTLE ROCK, AR ADDITIONAL FREIGHT CHARGES WILL APPLY.
Shear: Single Cut
Hole process: Punch on both legs
Measuring system: Wheel-measure
Machine speeds: 0 to 180 FPM
Positioning accuracy: ±.1/16"in.
Maximum angle: 6"x6"x1/2" (152mm x 152mm x 12.7mm)
Minum angle: 1" x 1" x 1/8" (25mm x 25mm x 3mm)
