Highlights and Options
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

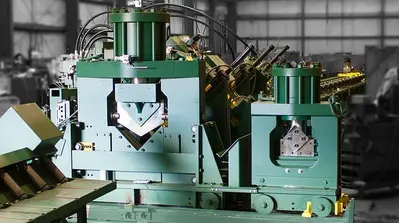

Shear: Single-cut, Double-cut, or both shear styles
Hole process: Punch on both legs (single, double or triple-gag)
Measuring system: Powered X-Probe or Wheel-measure
Machine speeds: 0 to 250 FPM
Positioning accuracy: Approx. .1/32" in.
Maximum angle: 8" x 8" x 1"
Minimum angle (with pinch-wheel): 1" x 1" x 1/8"
Minimum angle (with probe): 1-1/2" x 1-1/2" x 1/4"
Maximum flat bar: 12" x 1"
Minimum flat bar (with probe): 1/4" x 2-1/4"
Minimum flat bar (with pinch-wheel): 1/4" x 2"
Maximum channel: 12" (web punching and marking only)
Minimum channel: 3" (web punching and marking only)
