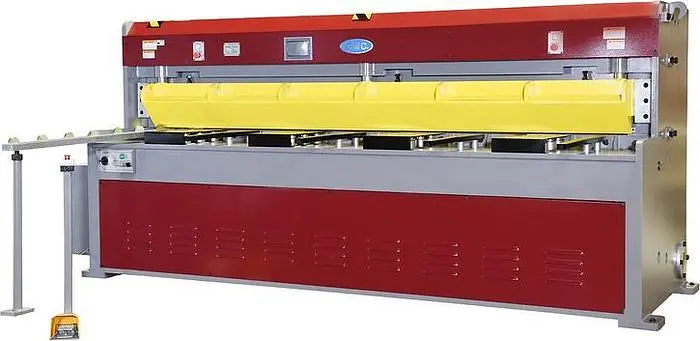

NEW GMC 10 X .250 SHEAR HS-1025E

This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!

Standard Features

ISO 9001 certified
Taiwan machines
comes with go-to NC power back gauge with touch screen
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts

Standard Included Equipment

36” go to NC back gauge w/ touch screen
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
4 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box

Optional Equipment

440V 3-Phase is optional
Safety fence for enclosure of the back side of the machine - $1,950.00

Capacity: 10' X .250 Mild 1/8" x 10' Stainless
Blade length: 122"
Strokes per Minute: 10-12
Throat depth: 18"
Table height: 34.5"
NC Back Gauge: 36" go to NC powered back gauge with touch screen
Front Support Arm: 24"
Blade Rake: 2 Degree
Motor HP: 20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL)
Shipping weight: 13,850 LBS
Dimensions (w x l x h): 181" x 117" x 65" (with back gauge and squaring arm)
