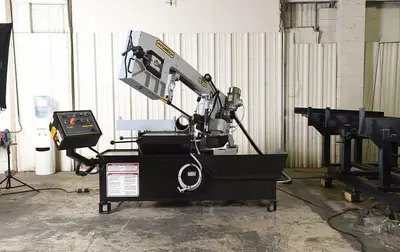

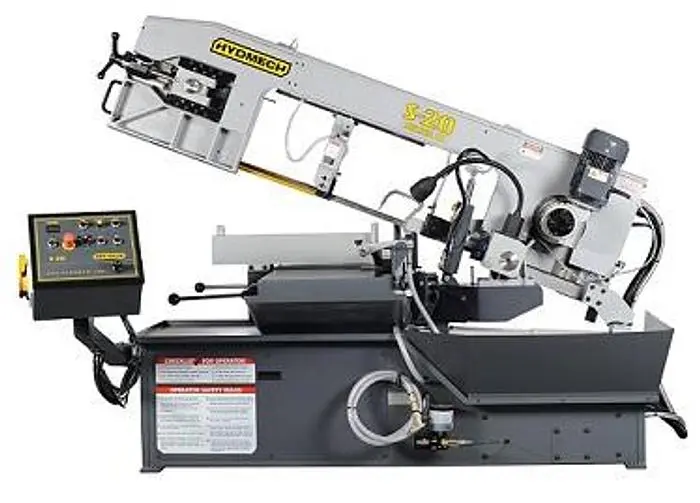

NEW HYDMECH GROUP S-20

Delivery:
TBD
480 Volt three Phase
Terms:
Net before Shipment
F.O.B.:
Conway, Arkansas
Machines in stock may have options not listed on this quote and may have freight from factory added also.  Please ask your salesman about stock machines.
HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice.
Standard Machine Features
• Easy swing, heavy duty cast iron saw head

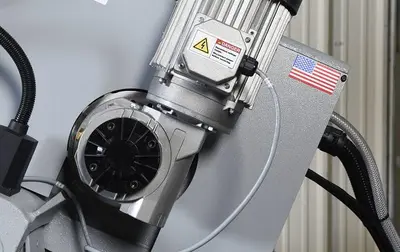

• 3 HP true direct blade drive – no belts/pulleys
• 36” material in-feed roller table and 19” out feed table

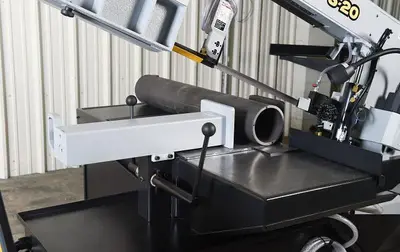

• Heavy duty sliding vise jaw
• Mechanical band tensioning with digital readout • Cast iron band wheels
• Swing away control
• Replaceable blade brush
• Robust steel base
• Easy to read angle scale with angle locking mechanism

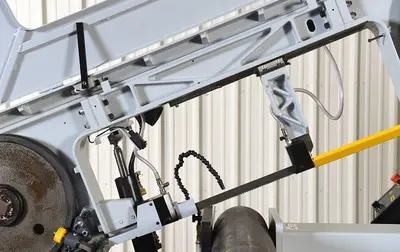

• Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail. • Gravity head feed
• Replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
Optional Machine Features
• Mist lubrication
• Idler conveyors • Work stop • Single phase – 220 v
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.

Capacity: Rectangular Round
90°: 13" x 18" 13"
45°: 13 x 10.75" 12"
30°: 13" x 7.75" 8.5"
Blade size: 1" x 14'10"
Blade drive": 3 HP VFD
Machine voltage: 480
Blade speed: 45-330 SFM
Coolant tank capacity: 6 Gallons
Work load: 5,000 lbs.
Machine weight: 2,200 lbs.
Table height: 31”
Dimensions (w x l x h): 92” x 75” x 52”
