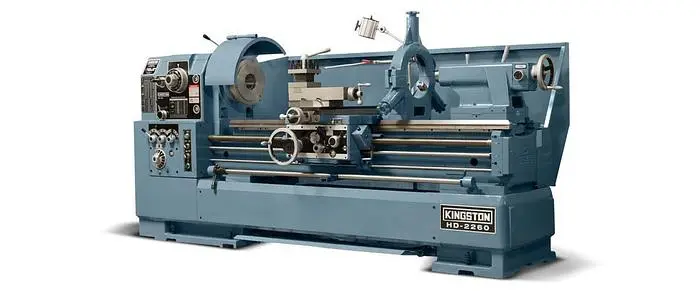

NEW KINGSTON HD SERIES

STANDARD EQUIPMENT & ACCESSORIES
• Main Motor: 10 HP (HD-22) / 15 HP (HD-26, HD-30),
230V / 460V, 3 Phase, 60 Cycle, Switch & Wiring
• 4.09" Spindle Bore
• Spindle Nose: D1-8 (HD-22) / D1-11 (HD-26, HD-30)
• 12 Spindle Speeds (13 – 1,200 RPM)
• Wye Delta Start
• Emergency Stop Button
• Chuck Guard
• 10” Steady Rest with Roller Jaws
• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)
• 4-Way Tool Post Fitted to T-Slotted Compound
• Coolant System with Pump and Piping
• LED Work Light w/ 120V Outlet
• Hardened & Ground Bed & Cross Slide Ways
• Cross Slide Screw: 8 (HD-22) / 5 TPI (HD-26, HD-30)
• Lead Screw: 4 TPI (HD-22) / 2 TPI (HD-26, HD-30)
• Automatic Longitudinal Feed Stop Bar
• Thread Chasing Dial
• Pull Drawer Chip (Oil) Pan
• Two-Speed Drive Tailstock Spindle (MT#5)
• Full Length Splash Guard
• Tool Box w/ Necessary Wrenches & Spanners
• Instruction Manual & Parts List
• Headstock Spindle Center Adaptor: MT#7 to #5
• Ground Steel Center MT#5 for Headstock
• 12" Back Plate
• Leveling Screws
• Leveling Pads
• Touch-Up Paint
GENERAL MACHINE SPECIFICATIONS
HD-22 HD-26 HD-30
Capacity Swing Over Bed 22" 26" 30”
Swing Over Cross Slide 13" 17.5” 21.5”
Swing in Gap 31.3" 35.1" 38.9”
Gap Width in Front of the Face Plate 10.6"
Distance Between Centers 35” 60" 90" 120" 160"
Maximum Turning Diameter 24.4” 24.4” 23.3”
Width of Bed 15.7"
Height of Center from Leg Bottom 42.0" 44.3" 46.5”
Headstock Spindle Bore 4.09”
Taper of Spindle Bore & Center MT#7 x #5
Type of Spindle Nose D1-8 D1-11 D1-11
Number of Spindle Speeds 12
Spindle Speed 13 – 1200 RPM
Gear Box Number of Feed Changes 16
Feeds per Revolution – Longitudinal 0.0012” – 0.039”
Leadscrew Diameter & Threads Per Inch 1.77”, 4 TPI 1.77”, 2 TPI 1.77”, 2TPI
Range of Inch Threads
2 – 72 TPI
(44)
1 – 42 TPI
(48)
1 – 42 TPI
(48)
Range of Metric Pitches 0.2 – 14mm
(39)
0.4 – 28mm
(44)
0.4 – 28mm
(44)
Feeds per Revolution – Cross
0.0004” –
0.0117”
0.0007” –
0.0188”
0.0007” –
0.0188”
Cross Slide Screw Threads Per Inch 8 TPI 5 TPI 5 TPI
Tool Slide Maximum Travel of Compound 9.5"
Maximum Travel of Cross Slide 15.8"
Tailstock Tailstock Quill Travel 9.8"
Tailstock Quill Diameter 2.9"
Taper in Tailstock Quill M.T. #5
Motor Main Drive Motor 10 HP 15 HP 15 HP
Coolant Pump Motor 1/8 HP
Dimensions Floor Space W: 47” L: 87” / 114" / 146" / 177" / 217"
Weight (lbs)
35” 5,100 5,300 5,800
60” 5,300 5,500 6,000
90” 6,200 6,300 6,900
120” 6,700 7,000 7,500
160” 7,000 8,000 8,600
REMARKS:
• Until further notice all machines may incur an ocean freight surcharge based on final ocean freight pricing.
• Price and specifications subject to change without notice.
• The machine will be guaranteed free from defective material and workmanship for a period of one (1) year under
normal working conditions on a one-shift basis (8 hours daily), excluding misuse by customer.
• Electrics guaranteed for a period of one (1) year (parts only).
• Kingston's responsibility ceases upon delivery to carrier. All claims of loss & damage against carrier must be handled
by purchaser.
