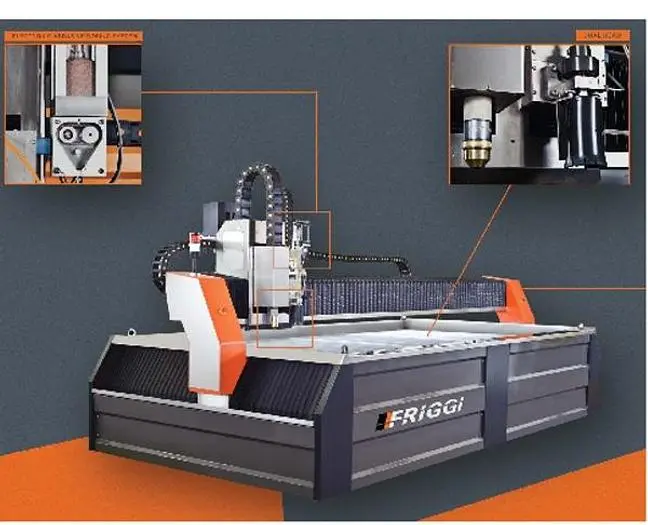

New Soitaab Dualine Cutting System Waterjet + Plasma

Delivery:
TBD
Equipped With
CNC controller with windows-based, EXPERT CUT PLUS is a CAD / CAM system specially designed to automate the programming of sheet metal cutting machines (oxicut, plasma, laser, water jet).
Power supply, Hypertherm HPR260XD with 260
Heavy-duty, utilized, rigid, fully welded design
Advanced torch height control
Digitally controlled AC brushless servomotors
Three zone downdraft system with easy clean-out
Build-in pneumatic clamps
Motion control system incorporates dual, synchronized digitally-controlled AC brushless servo drive motors, precision rails and rack pinion drives for both the dual X-axis and the Y-axis motion. This provides high acceleration, deceleration, torch positioning accuracy and point to point repeatability across the entire work envelope.
PRICE AND SPECS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SMF CAN OFFER FINANCING OPTIONS FOR YOUR PURCHASE, ASK YOUR SALESMAN FOR DETAILS. IF MACHINE SHIPS FROM LITTLE ROCK, AR ADDITIONAL FREIGHT CHARGES WILL APPLY.

Work cutting area: X=66" Y=120" Z=7.8"
Height of cutting table: 37-3/4"
Travel speed, max.: .04 to 780 IPM
Plasma torches (1): 260 amps
Cutting capacity: 2.5" max. Mild Steel
Piercing capacity: .5" max. Mild Steel
Power supply: 480 VAC, 3 phase, 60 Hz
Continuous output pressure: 60,000 psi
Output flow: 0.92 gal/min
Orifice diameter: 0.016"
Intensifier configuration: Single
Motor power: 37 kw
Full load amps 480 vac 60 hz: 65 A
