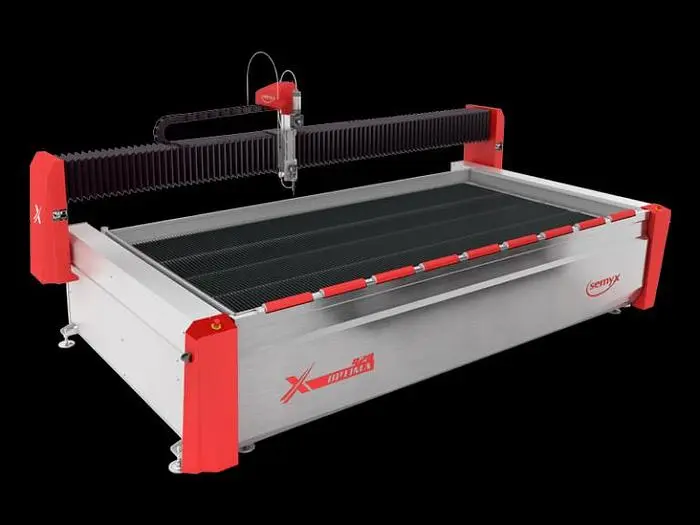

Semyx Water Jets Optima Series

Delivery: TBD
Terms: Net Before Ship
Location: Dalton, Georgia
Heavy Duty Tank
Ball Screws
Precise Rigid Design
Front Rollers
ADDITIONAL OPTIONS:
5-Axis Head
Dual Cutting Head
Multiple Cutting Heads on 1 Z-Axis
Auto Height & Anti Collision
Dual Z-Axis
GRS Abrasive Removal System
Automatic Water Level Control
Front Rollers
Closed Loop Filtration System
Chiller
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.

X-axis cutting stroke mm (in): 2032 (80") 2032 (80")
Y-axis cutting stroke mm (in): 3048 (120") 4064 (160")
Z-axis stroke mm (in): 304.8 mm (12") 304.8 mm (12")
Footprint width mm (in): 2820 mm (111") 2820 mm (111")
Accuracy mm (in): 0.05 (0.002") 0.05 (0.002")
Repeatability mm (in): ±0.025 (±0.001") ±0.025 (±0.001")
Drivers: AC Servo Motors AC Servo Motors
Motion for x-axis: Ball Screw Ball Screw
Motion for y-axis: Ball Screw Ball Screw
Tank load capacity: 750 kg/m2 (153 lb/ft2) 750 kg/m2 (153 lb/ft2)
