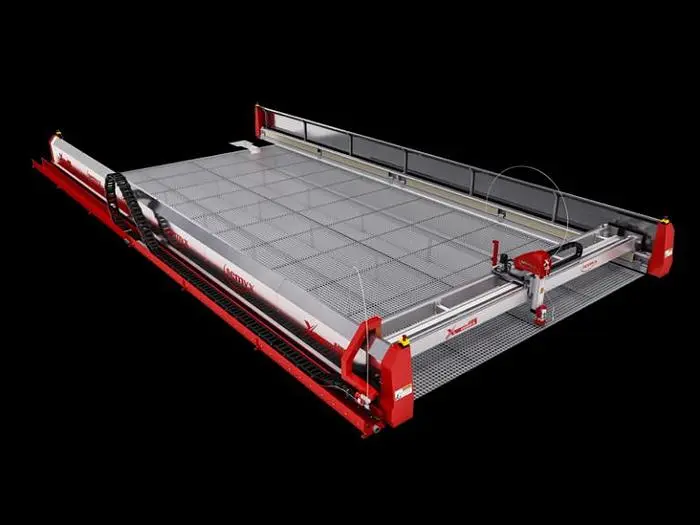

Semyx Water Jets Cobra Series

Delivery: TBD
Terms: Net Before Ship
Location: Dalton, Georgia
Heavy Duty Tank
Ball Screws
Precise Rigid Design
Front Rollers
Additional Options
Multiple Cutting Heads on 1 Z-Axis
Dual Z-Axis Head
Multiple Gantries
Chiller
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.

X-axis cutting stroke mm (in): 10000 mm (33 Ft.)
Y-axis cutting stroke mm (in): 4572 mm (16 Ft.)
Z-axis stroke mm (in): 180 mm (7 in.)
Footprint width mm (in): 5900 mm (233 in.)
Footprint length mm (in): V
Cutting speed: 0-50m/min
Free speed: 50m/min
Acceleration: 2m/s2
Accuracy mm (in): ± 0.2 mm (0.008”)
Repeatability mm (in): ±0.05 mm (±0.002”)
Drivers: AC Servo Motors
Motion for x-axis: Helical Rack & Pinion
Motion for y-axis: Helical Rack & Pinion
Cutting heads: 1
