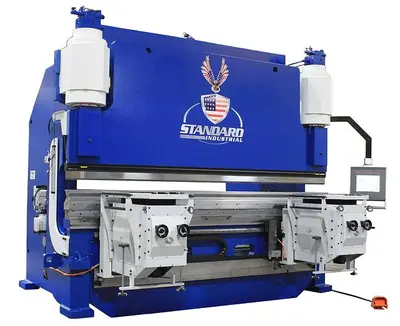

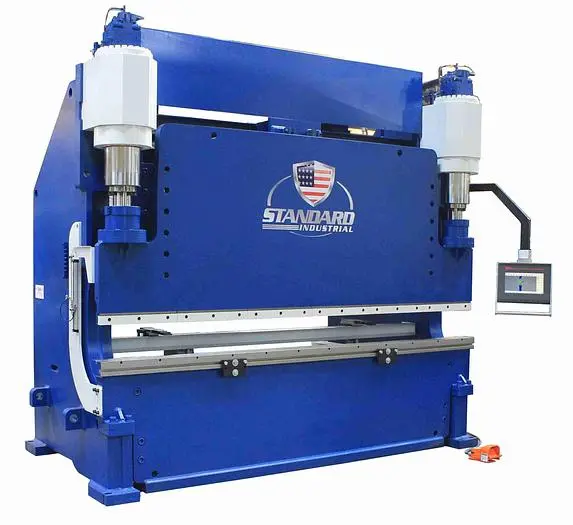

NEW STANDARD EV SERIES CNC PRESS BRAKE 90 TO 550 TONS
Overview
Description
Please request a quote for your specific needs
Standard Features included in quote
« (2) 24” T-Slot Support Arms with imbedded scale
« T-slot across front edge of brake bed
« 8” Deep gaps in side frames for bending longer lengths with
larger flanges
« The parallelism between moving upper beam and fixed lower
beam during is ensured by two precision proportional valves.
controlled by the CNC control (axes Y1 and Y2).
« Motor and controls. Electrics for 3/60/220/440. Low voltage at
the controls. Emergency stop palm button.
« All Components Readily Available from Your Local Suppliers
« All component’s original manufacturer and part number are included in machine manual so you will never have problems locating parts.
« Typical 20-30 Year Lifetime at 24 hr shifts
« Manual ram clamps for American style tooling. Available with Wila
quick-change ram clamping optionally.
« Two day onsite training in contiguous U.S.
« 29” travel, X axis, servo gauging system w/manual R/Z
Standard Features Included in quote
840 2D Graphical Control
« Multi-touch touchscreen allowing
operator to draw parts/tooling
with finger/stylus
« Remote support/service and
diagnostics via ethernet
« Windows 10 operating system
« Fully 2D Graphical control
w/touchscreen
« 15” color screen on pendant
« Crowning correction in degrees
(crowning sold separately)
« 2D identification of best bending
sequences
« 2D graphical Offline software for
desktop programming
« 2D collision detection
« Unlimited job storage via USB &
Ethernet
« X, Y, R, Z1-Z2, X-Prime
programmability
« Readily accepts most tooling
files
« 30,000 hard drive programs
« Programmable delay & retract
at pinch point
« Direct connection of optional
Mitutoyo protractor and
Anglecheck devices to allow
process angle measurement
« Inch/mm conversion
« Auto return of ram included
« Low speed retract included
« Dwell/decompression included
« Onsite training at customer's facility
Readily available
Off-the shelf controls
Available anywhere in the world
Standard Features Included in quote
Frame, Construction, Warranty
« 5 Year Parts Warranty/5 Year Limited Labor
Warranty / 2 Year CNC Control /
Unlimited telephone support
« Frame is an extremely
heavy duty, welded
fabrication minimizing
deflection and
crowning.
« Extremely rigid movable
beam for minimum
deflection
« Machine is flush floor mounted; no pit required
« Built-in overload protection
« The measuring of the ram position is made
by two precision linear encoders located on each
end of the upper beam. As the reference is
always measured in relation to the bed, the
ram position on bending depth is independent from
the work length.
X Axis Servo Gauging System
« X servo axis
« 29” X axis travel
« X axis
Speed: 15” per second
Accuracy: +,- .003”
« Manual R + Manual Z
« Gauge is rated for up to 450 ton x 14’
capacity
« Upgradeable to R, Z1-Z2, X-Prime,
X1-X2, R1-R2 axes
« Upgradeable to 39” travel
(longer travels are available)
« Y1-Y2-Axes +,- .0004” ram repeatability and programming of the ram position
(vertical) as well as tilting +, - .750” (or more) for tapered bends (cones)
« Front Gauging 2 each – 24” Front support arms with imbedded scales also
includes t-slot across front edge
« Groove in Bed and Ram Clamps for American Style Tooling (other styles avail.)
« 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty
« Lifetime Telephone Support at No Charge
« Manifold centralized lube system
« Hand/Foot sequence w/footswitch for single operator
« T-slot across front edge of brake bed
« UL508A compliant
« Programmable tonnage via the 840 control
« Heavy duty, X axis, servo gauging system with 29” travel, manual R and
manual Z
« Training: 2 Day Onsite training for operation, maintenance, safety and insure proper physical installation of machine.
Specifications
Ram Repeatability: +,-.0004"
Machine capacity: 90 to 550 Tons at your request
Bending length: from 10 to 24' at your request
