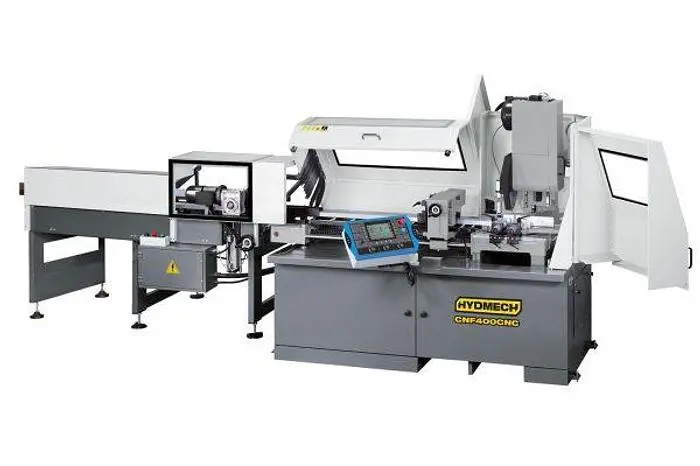

NEW HYDMECH GROUP CNF400CNC

Delivery
: Stock, TBD
Terms
: Net before Shipment
F.O.B.
: Conway, Arkansas
• Automatic operation
• Shuttle features automatic multi-indexing up to 40” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
• Head stroke is set directly from control panel
• Two blade speeds achieve speeds of 1700 or 3400 rpm
• Warning indicator with flashing light in case cycle stops
• Pneumatic vertical vise
• Robust sawing head miters 45° left and right, and 60° left
• Heavy duty sawing head movement controlled by pneumatic cylinder. Head moves on adjustable dual precision linear rails
• 6 HP blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates.
• Pneumatic horizontal operating vise capable of sliding on dovetail to adjust with saw head mitered position
• Enclosed steel base coolant tank
• Replaceable blade brush
• Ergonomically positioned MEP 40 control panel includes emergency stop, programming console, digital display for machine diagnostics, as well as cutting parameters: blade speed, cut time, and cut quantity. Store up to 32 jobs.
• Automatic mist lubrication activates during the cut
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.

Capacity *apply to aluminum applications only*: Round Hollow Square Hollow Rectangular Hollow (lxh) Round solid Square Solid
90°: 5” 4 3/4" 7" x 4" 5" 4 3/4”
45° left & right: 4 1/2” 4" 4 3/4" x 4" 2 3/4" 2 3/4”
60° left: 4 1/2” 3 1/2” 3 1/2" x 3 1/2" 2" 2”
Blade size: 400 x 3.8 x 32 carbide tipped
Blade drive: 6 Hp
Machine voltage: 240 or 480 v
Standard remnant length: 15"
Blade speed: 1700 and 3400 rpm
Machine weight: 2,350 lbs
Dimensions (wxlxh): 97" x 70" x 75"
Short remnant option: 5.9"
