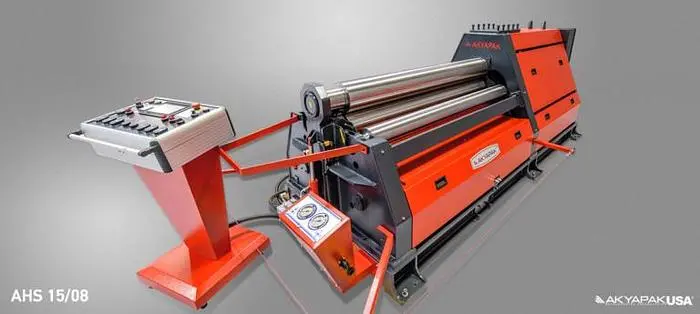

AKYAPAK AHS 15/08 Four Roll Plate Roll

3/8″ x 5′ Four Roll Double Pinch Plate Roll.
Standard Equipments;
Optional Equipments;
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Additional options

-AK400 6 axis cnc controller $13,391
-Overhead Top Support $9,565
-2 Side Supports $5,310
-Exworks $TBD

Working length: 5 foot
Max. thickness: 3/8 Inch
Pre-bending thickness: 5/16 Inch
Top roll dia.: 7.5 Inch
Bottom roll dia.: 6.7 Inch
Side roll dia.: 5.9 Inch
Motor power: 4
Length: 12 Feet
Height: 3.4 Feet
Width: 3.7 Feet
Weight: 4,453
Min. bending diameter (top roll diameter = trd): TRD x 3
