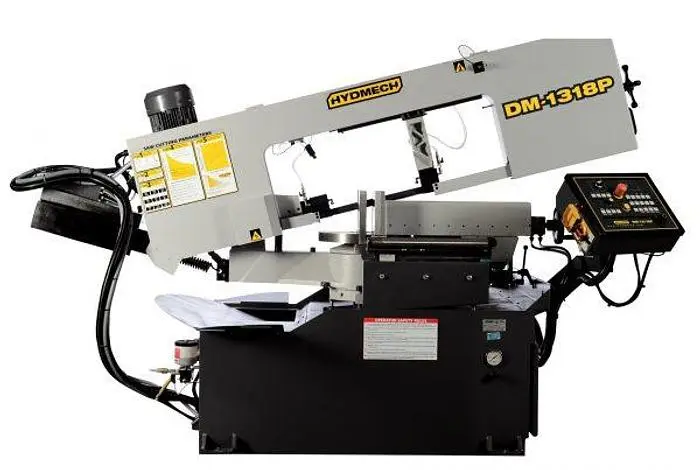

NEW HYDMECH GROUP DM1318P

Delivery:
TBD
Terms:
Net before Shipment
F.O.B.:
Conway, Arkansas
HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice.
The DM-1318P d
ouble miter, semi-automatic band saw
provides exceptional miter cutting for medium duty applications.
Its versatile swing head with easy to read angle scale saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.
Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile
double miter band saw
.
Capacity
Rectangular (h x w)
Round
90°
13″ x 17 3/4″
13″
45° Left
11 3/4″ x 11 3/4″
11 3/4″
45° Right
11 3/4″ x 11 3/4″
11 3/4″
30° Left
7 3/4″ x 7 3/4″
7 3/4″
30° Right
7 3/4″ x 7 3/4″
7 3/4″
Blade Size
1 1/4” x 14’ 9”
Blade Drive
5.5 HP VFD
Machine Voltage
240, 480 (208, 575 n/c trans.)
Blade Speed
65-330 SFM
Coolant Tank Capacity
21 Gallons
Machine Weight
2,515 lbs.
Table Height
35”
Dimensions (w x l x h)
130” x 69” x 89”
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.
