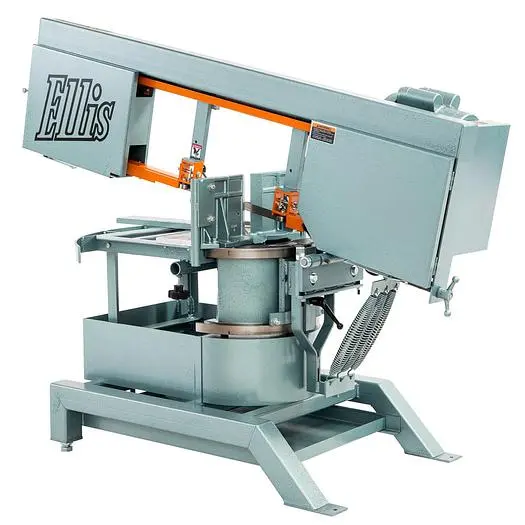

NEW ELLIS MFG 2000 MITRE BAND SAW

Capacity (90° & 45°)
11” Round at 90°
10” Pipe at 90°
17” Flat at 90°
11” H x 13” W at 90°
11” Round at 45°
10” Pipe at 45°
11” Flat at 45°
9” H x 11” W at 45°
Capacity (60°)
6” W x 9” H at 60°
6” Square at 60°
7” wide x 2” thick – Flat Stock at 60°
6” pipe (6-7/8” O.D.) at 60°
Blade Speeds (3)
60-115-230 FPM
Blade Size
12’0” x 1”
Feed Control, Hydraulic Adjusting, Vise Quick Adjusting Camlock Shut Off Automatic
Motor – Standard1-1/2 H.P. 220 Volt Single Phase
Optional
3 PH 220-440-460-480-575Shipping Weight800 lbs. Size Table Height
28-1/8”
Length 72”
Width 38-1/4”
Height 47”
Sealed Oil Bath Worm Gear
Standard Removable Chip Tray Standard Construction Heavy Steel; Welded & Machined for Accuracy & Durability
