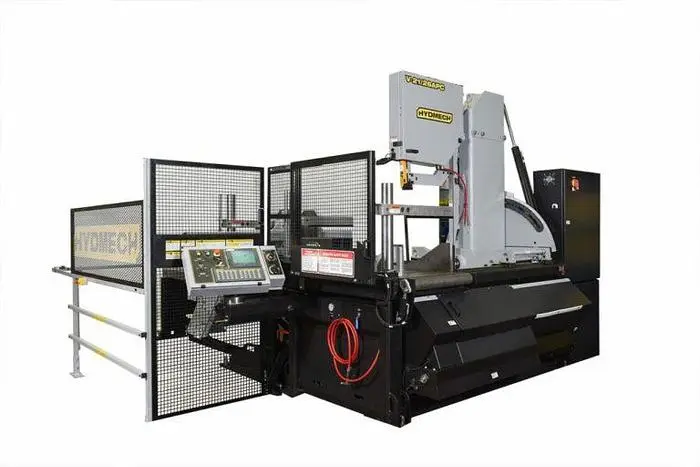

NEW HYDMECH GROUP V-21/26APC

Standard Machine Features

·    4° canted head allows for efficient cutting and improved blade life

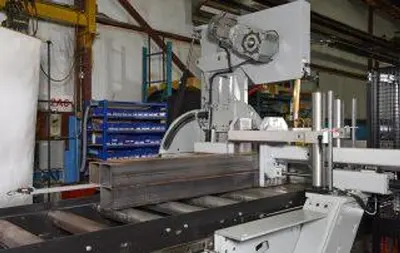

·    60” bar feed, left side
·    Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.

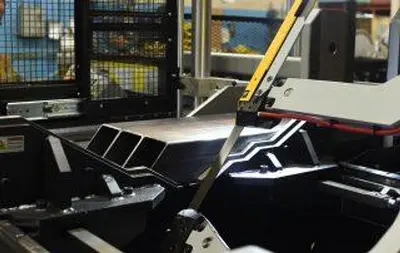

·    Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
·    Hydraulic head tilt
·    Cast iron band wheels
·    Hydraulic DDF system

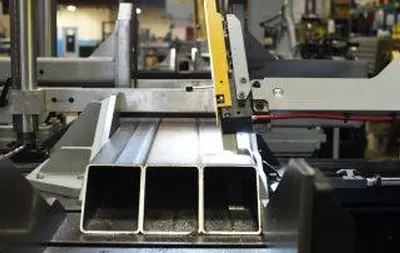

·    Two full stroking hydraulic vises
·    Hydraulically powered, programmable guide arm attached to saw column.

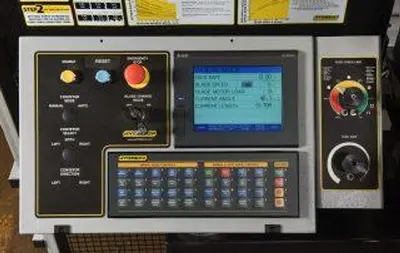

·    8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue

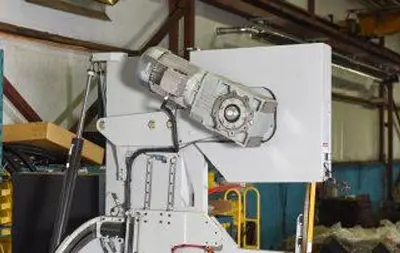

·    10 HP VFD. True direct blade drive – no belts/pulleys
·    Blade chamber separates material from cut part

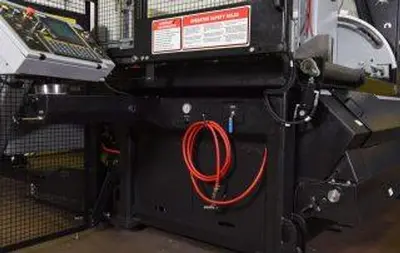

·    Hydraulic chip conveyor
·    Replaceable blade brush
·    Robust steel base
·    Out of stock switch

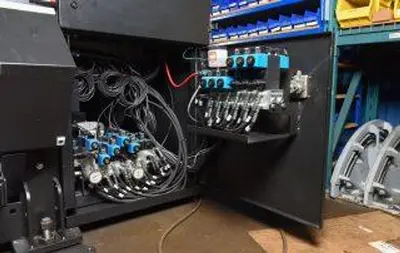

·    Blade breakage switch Easy access electrical panel and hydraulics
·    Pop-up feed roller – one, opposite bar feed
·    Hydraulic band tensioning with digital readout
·    Replaceable carbide guide inserts
·    3 HP hydraulic pump provides system pressure
·    Safety door interlocks
·    Flood coolant with wash down hose
·    Laser light
·    Work light
·    Variable vise pressure

Optional Machine Features

·    Chip bucket with pump
·    Full capacity hydraulic overhead bundling
·    Mist lubrication
·    Tall square vise inserts
·    Out feed vise
·    Out feed vise bundling
·    Right side infeed shuttle
·    10’ shuttle infeed
·    Bridge/interface bracket
·    Powered bridge/interface bracket
·    Idler conveyors
·    Powered conveyors

Capacity: Rectangular (h x w) Square Round
90 degrees: 26" x 21" (22" x 21" w/ bund) 21" 21"
45 degree right: 18" x 21" (15.5 x 21" w/ bund) 18" 17"
45 degree left: 18" x 21" (15.5" x 16.5" w/ bund) 18" 17"
60 degree right: 12 1/2" x 21" (7" x 21" w/ bund) 12" 12"
60 degree left: 11" x 21" (7" x 16.5" w/ bund) 11" 11"
Blade size: 1-1/2" x 19' 4"
Blade drive: 10 HP VFD
Motor voltage: 208, 240, 480, 575
Blade speed: 65-385 SFM
Coolant tank capacity: 32 Gallons
Remnant length: 26"
Hydraulic tank capacity: 7 Gallons
Machine weight: 14,700 lbs.
Table height: 44"
Dimensions (w x l x h): 188" x 184" x 112"
Mitering capability: 60 Degrees left to 60 Degrees right
