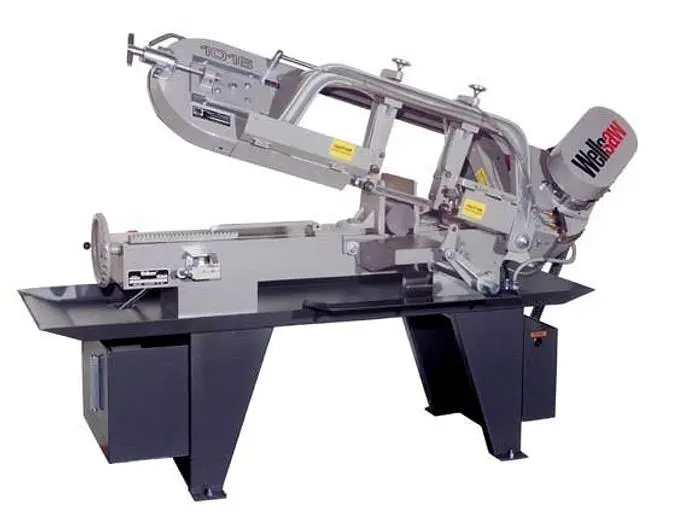

New WellSaw Model 1016

Zero-Clearance Spring-Loaded Carbide Guides With Rollers
Perimeter Ring Gear Blade Drive
2 HP Baldor® Motor      Complies with DOE Small Motor Rule
Four Band Speeds
Rite-Tension® Blade Tensioning Device
12” Cast Iron Discharge Table
Adjustable Sawing Force
Variable Hydraulic Downfeed Control
Wet Cutting System
Rotary Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Vise Jaws
Quick Acting Vise
Positive Frame Lock
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth ® Bi-Metal Blade
Coolant for Initial Start-up
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Capacity: Round 10.5", flat 16.5"
Blade size: 1" x .035" x 11'6" (138")
Blade speeds: 50-100-175-275 SFPM
Blade guides: Carbide Guides with Rollers
Blade tension: Manual Rite-Tension
Electrical: 110 Volt other options available.
Coolant system: Tank Capacity 8 gallons Submersible Pump 170 GPH
Discharge table: 12” long x 7-5/8” wide,
Cast iron
Frame weight control: Adjustable Counterbalance Spring
Sliding Weight
Swivel vise: To 45°
Feed control: Variable Hydraulic
Shipping dimensions: 38” x 88” x 64” high
Shipping weight: 930 lbs.
Floor area: 32"W x 84"L
