NEW HYDMECH GROUP H-32A

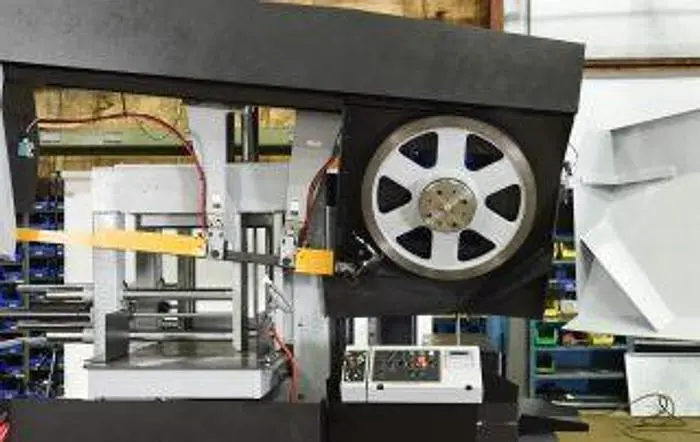

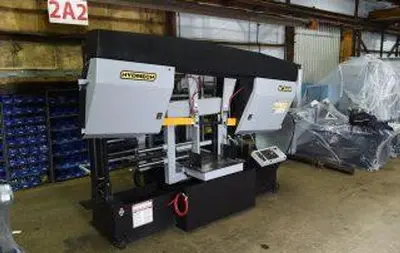

The H-32A is an a
utomatic horizontal band saw
providing accurate 90° metal cutting for heavy-duty applications.

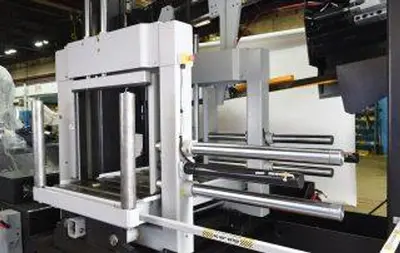

The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications
Capacity
Rectangular (h x w)
Round
90°
32″ x 32″
Canted: 28″ x 32″
32″
Canted: 28″
Blade Size
2 5/8” x 30’ 4”
Blade Drive
20 HP VFD
Machine Voltage
480 v (208, 240, 575*)
Blade Speed
40-300 SFM
Automatic Multi-Indexing
0-32″
Machine Weight
19,500 lbs.
Table Height
31” Canted: 37″
Dimensions (w x l x h)
182” x 92” x 120”
