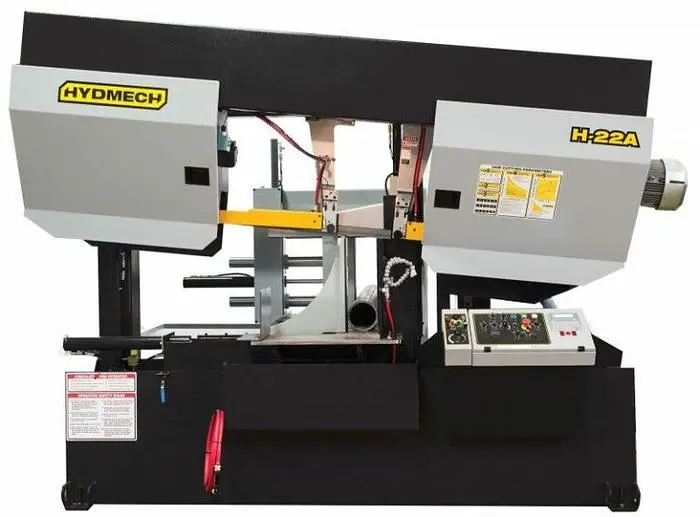

NEW HYDMECH GROUP H22A

The H-22A is an
automatic horizontal band saw
providing accurate 90° metal cutting for heavy-duty applications.
The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
Delivery:
TBD
Terms:
Net before Shipment
F.O.B.:
Woodstock, ON, Canada
Warranty:
Two year parts, One year labor (Labor provided by dealer)
Machines in stock may have options not listed on this quote and may have freight from factory added also.  Please ask your salesman about stock machines.
HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice.
Capacity
Rectangular (h x w)
Round
90°
22″ x 22″
Canted: 20″ x 22″
22″
Canted: 20″
Blade Size
2” x 22’ 6”
Blade Drive
10 HP VFD
Machine Voltage
208, 240, 480, 575 v
Blade Speed
40-300 SFM
Automatic Multi-Indexing
0-34″
Machine Weight
12,500 lbs.
Table Height
31” Canted:35″
Dimensions (w x l x h)
141” x 88” x 92”
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.
