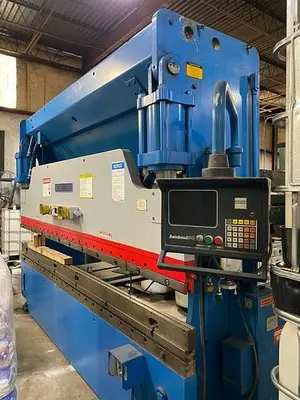

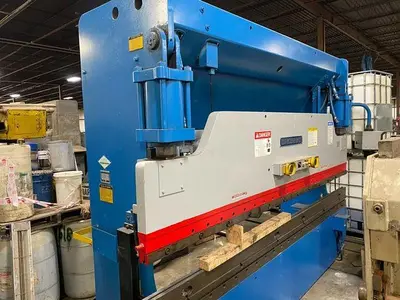

USED CINCINNATI 90CB

Capacity:                                      90 Ton
Bed Length:                                 10′
Between Housing:                       102.5″
Throat Depth:                              7″
Stroke:                                         8″ Adjustable
Voltage:                                       480V/3PH
Approx. Shipping Dimensions:  148″ L x 60″ W x 116″ H
Approx. Shipping Weight:           20,000 Lbs
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Max. capacity: 90 Ton
Overall bed length: 12'
Distance between housings: 10'6"
Max. stroke: 8"
Throat depth: 7"
Ran speed, high: 150 IPM
Ram speed, medium: 71 IPM
Ram speed, low: 21 IPM
