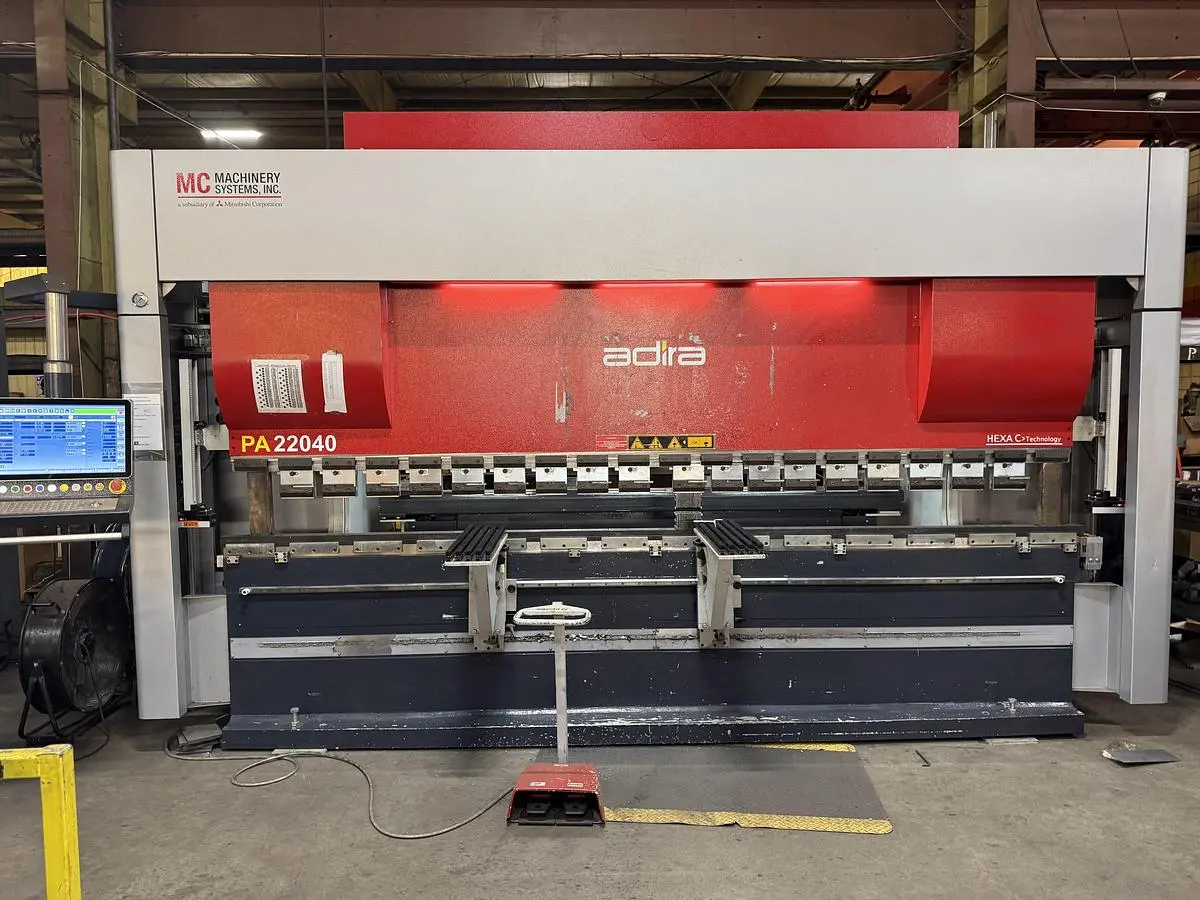

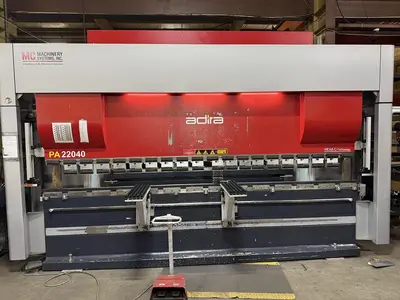

USED ADIRA 220-40

Capacity: 2200 kN / 220 Ton
Bending length: 4000 mm / 157.48''
Distance Between Housings: 3150 mm / 124.01''
Max Stroke: 260 mm / 10.23''
Open Height w/o tools: 500 mm / 19.68''
Throat Depth: 400 mm / 15.74''
Motor Power: 15 kW / 20 HP
Approach Speed: 130 mm/s 5.11 in/s
Working Speed: 8 mm/s 0.314 in/s
Return Speed: 85 mm/s 3.34 in/s
Stroke of Axis X: 625 mm / 24.60''
Speed of Axis X: 500 mm/s 19.68 in/s
Stroke of Axis R: 200 mm / 7.87''
Speed of Axis R: 50 mm/s 1.96 in/s
Stroke of Axis Z1/Z2: 2750 mm / 108.26''
Speed of Axis Z1/Z2: 400 mm/s 15.74 in/s
Min. machine Length: 4980 mm / 196.06''
Max. machine length (C): 5780 mm / 227.55''
Max. width (D): 2180 mm / 85.82''
Max. height (E): 3120 mm / 122.83''
Transportation height: 2880 mm / 113.38''
Approx. weight: 13500 Kg / 29,763 lbs
Height of work station (F): 930 mm / 36.61''
