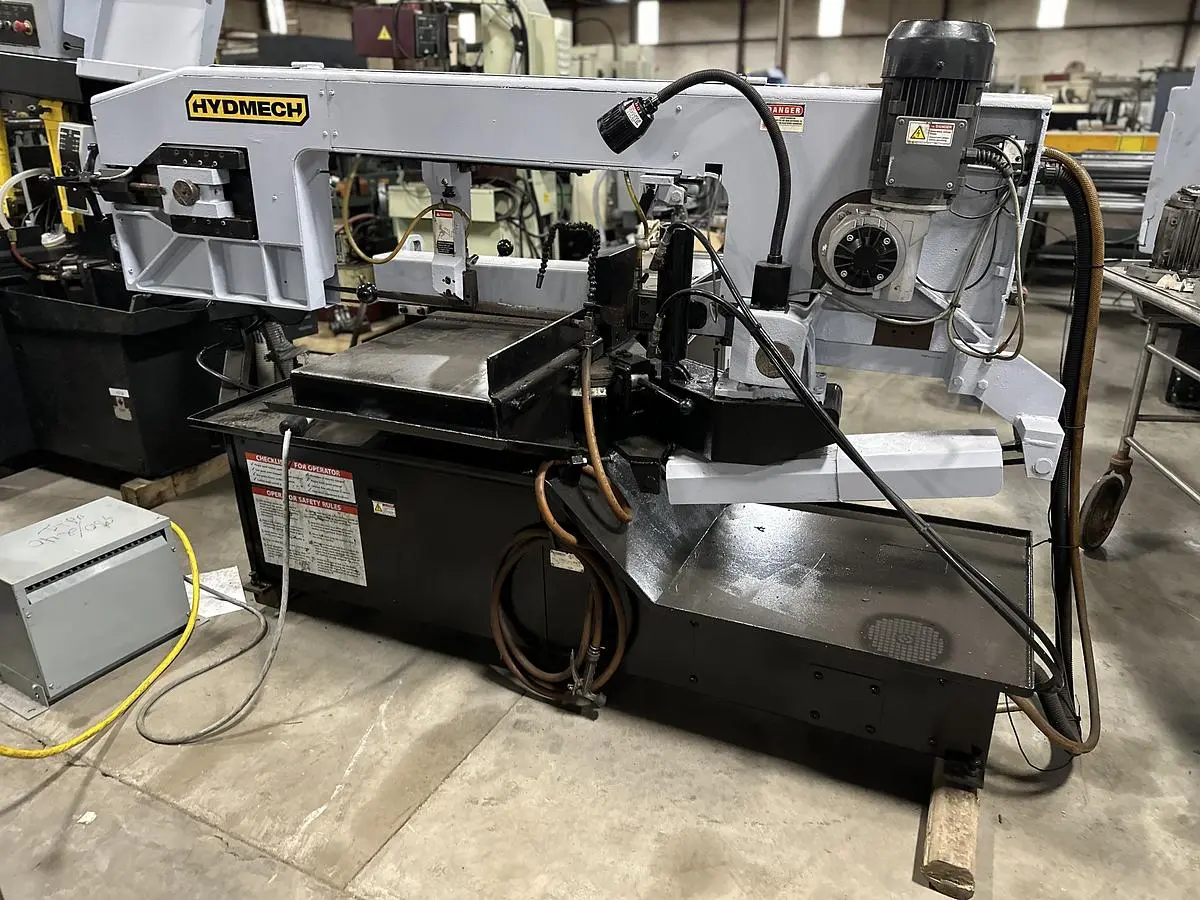

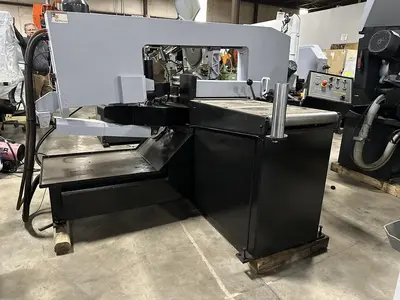

USED 2013 HYDMECH GROUP S-20M

Delivery:
TBD
Terms:
Net before Shipment

Standard Machine Features
• Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
• Full capacity, full stroking mechanical vise

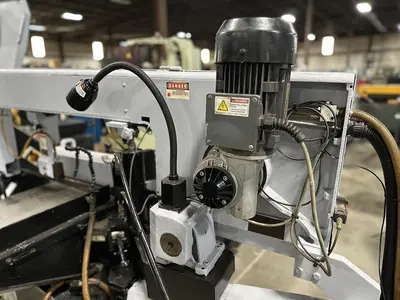

• 3 HP VFD. True direct blade drive – no belts/pulleys
• 36” material in-feed roller table and 19” out feed table
• Cast iron band wheels
• Swing away semi-automatic operator control panel
• Replaceable blade brush
• Robust steel base
• Easy to read angle scale with angle locking mechanism

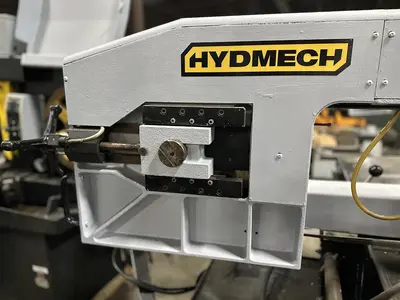

• Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail
• Gravity fed sawing head down feed adjustment
• Mechanical band tensioning with digital readout
• Present replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Work light

SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Capacity: Rectangular (h x w) Round
90°: 13" x 18" 13"
45°: 13" x 10.75" 12"
30°: 13" x 7.75" 8.5"
Blade size: 1” x 14’ 10”
Blade drive: 3 HP VFD
Machine voltage: 208, 240, 480, or 575 v
Blade speed: 45-330 SFM
Coolant tank capacity: 6 Gallons
Work load: 5,000 lbs.
Machine weight: 2,500 lbs.
Table height: 31”
Dimensions (w x l x h): 92” x 75” x 52”
