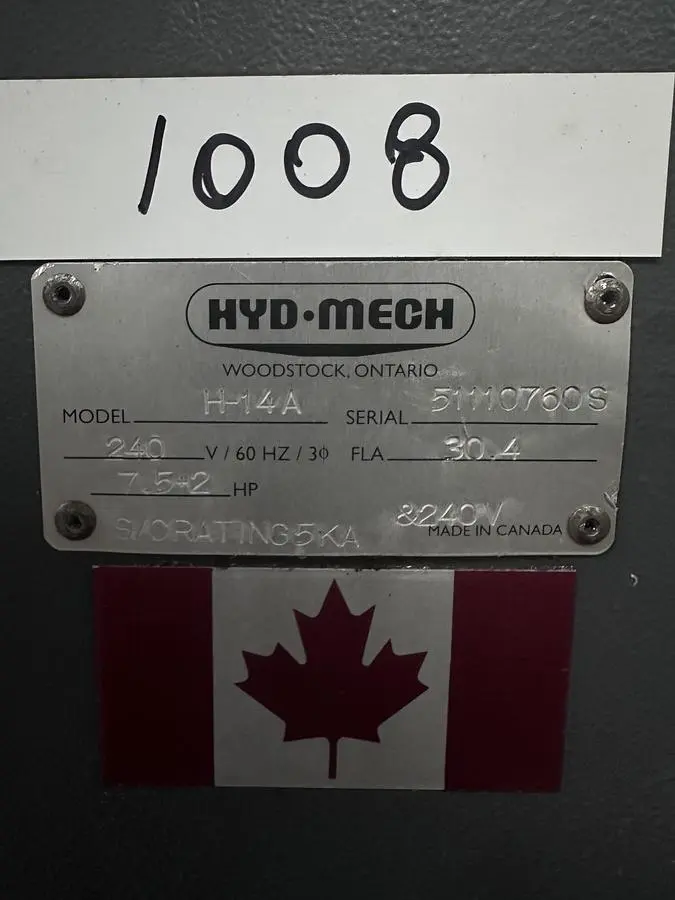

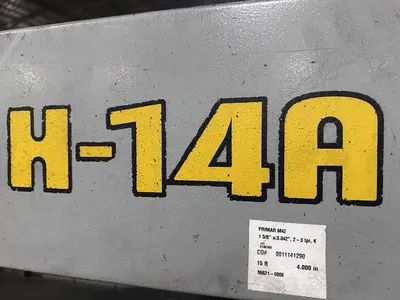

USED 2010 HYDMECH GROUP H-14A

Standard Machine Features
• Heavy duty cast iron saw head
• Split front vise
• Cast iron shuttle features automatic multi-indexing up to 24” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
• On-demand hydraulics save energy
• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
• 8.8 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Hydraulic positive down feed
• Blade chamber separates material from cut part
• Cast iron band wheels
• Automatic PLC, control programmable up to 100 jobs with 20 in queue.
• Replaceable blade brush
• Robust steel base
• Automatic chip removal conveyor
• Easy access electrical panel and hydraulics
• Variable vise pressure
• Blade breakage switch
• Designed for safety with saw-in-a-box style
• Electronic band tensioning with digital readout
• Replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Work light

SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.

Capacity: Rectangular (h x w) Round Square
90°: 14" x 14"
Blade size: 1 .25” x 15’ 2”
Blade drive: 8.8 HP VFD
Machine voltage: 240
Blade speed: 49-380 SFM
Automatic multi-indexing: 0-24”
Remnant length: 4.7”
Coolant tank capacity: 53 Gallons
Machine weight: 6,172 lbs.
Table height: 34”
Dimensions (w x l x h): 88” x 63” x 78”
