1999 Hitachi Seiki HG-400 w/ 4th Axis, (24) 16" Pallets, 22"x23"x20", CT40, 12K RPM, 120 ATC, Mark III Ctrl
| X-Axis | 22" | 558.8 mm |
| Y-Axis | 23" | 584.2 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Dimensions | 244x113x126 in | 244x113x126 in |
| Weight | 33500 lbs | 33500 lbs |

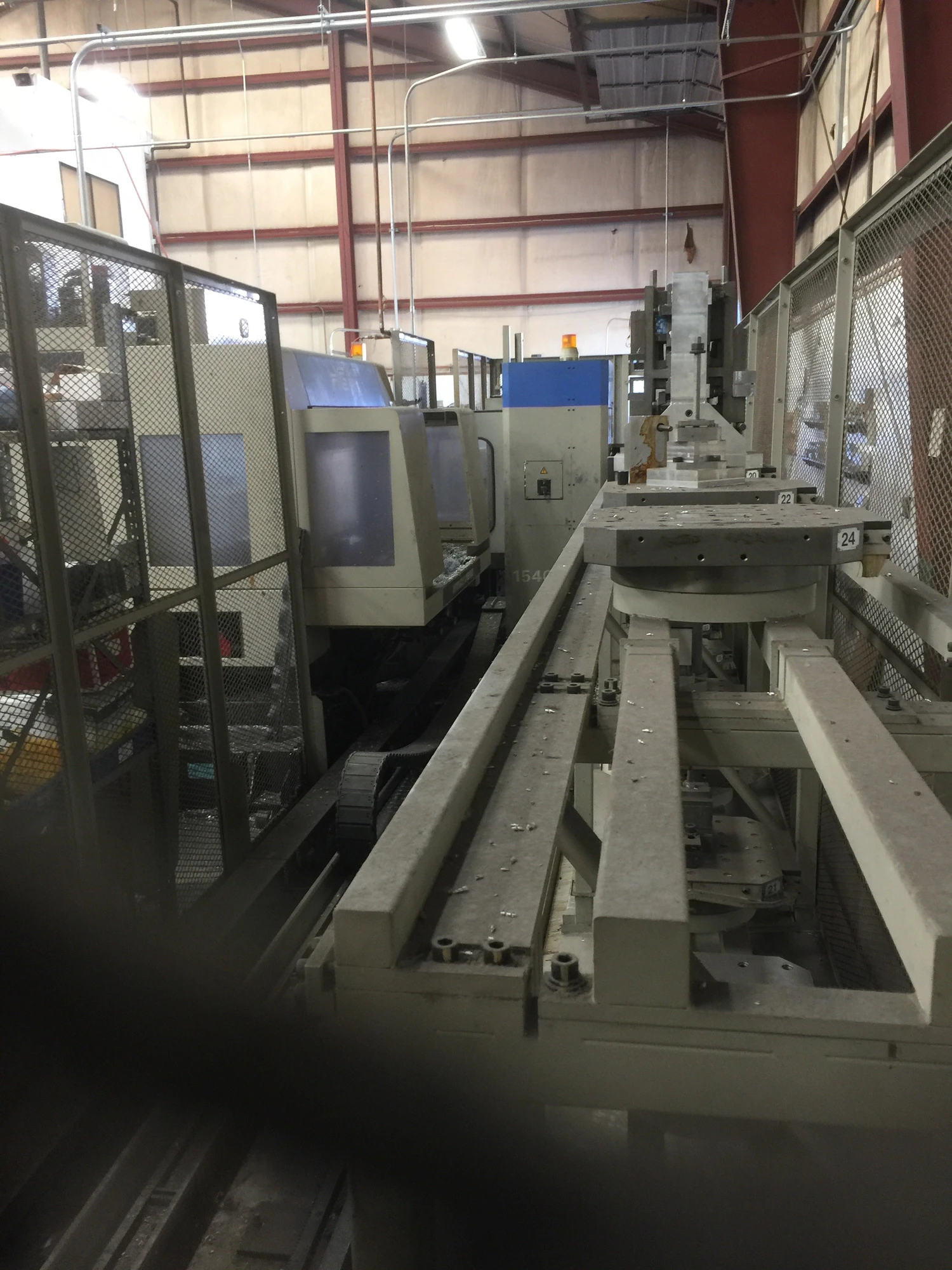

(1) USED HITACHI SEIKI HG-400 HORIZONTAL MACHINING CENTER
New: 1999
Specifications:
Travels:
X-Axis: 22"
Y-Axis: 23"
Z-Axis: 20"
Pallet size: 15.75" x 15.75"
Number of Pallets: 24 Pallets (2 levels x 12)
Spindle Speed: 12K RPM
Spindle Taper: CAT 40
Motor: 15 HP
Feed Rate Rate: 0.01 - 630 IPM
Machine Dimensions: 244" x 113" x 126"
Machine Weight: 33,500 lbs.
Equipped With:
Mark III Control
120 Tool ATC
NOTE: Machine can be seen under power in plant. Only used to cut aluminum. Spindle is vibrating at 8-10K RPM and needs to be chromed and regrinded. All other features on the machine are in good condition.
