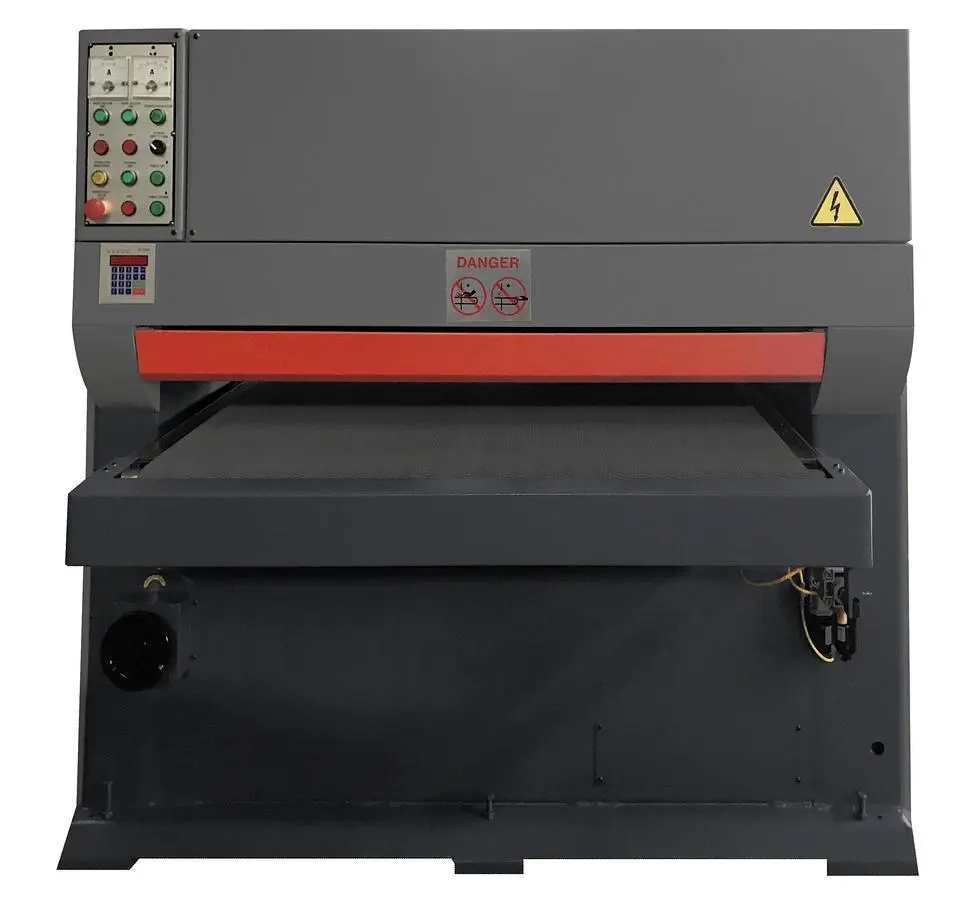

NEW GMC MACHINE TOOLS FP-5160T

Product: Sanders, Belt
Max Part Width: 51"
Abrasive Belt Size: 51" x 60"
Contact Roll Size: 8"
Passline Height: 31" - 37"
Max Thickness: 20 Ga. to Max. 5 1/8"
Min. Workpiece Size: 12" (fixture needed for smaller parts)
Max. Workpiece Weight: 275 lbs.
Conveyor Drive Speed: 15 - 56 FPM
Infeed Conveyor Length: 20"
Dust Collector Capacity: 2800 CFM
Main Motor: 30 HP, 230V, 3PH (460V available)
Table Lifting Motor: 2 HP, 230V, 3 Phase (460V available)
Dimensions (approx): 825 x 68 x 73"H
Weight (approx): 4190 lbs.

STANDARD FEATURES:
MADE IN TAIWAN
Computerized programmable thickness control
Abrasive belt size: 51” x 60”
10” diameter heavy duty drum for perfect graining
5-1/8” wide opening for max. workpiece thickness 5”
Motorized Table Lift with LED display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase ( 440/460V is available )
One year Industrial Warranty for parts.
