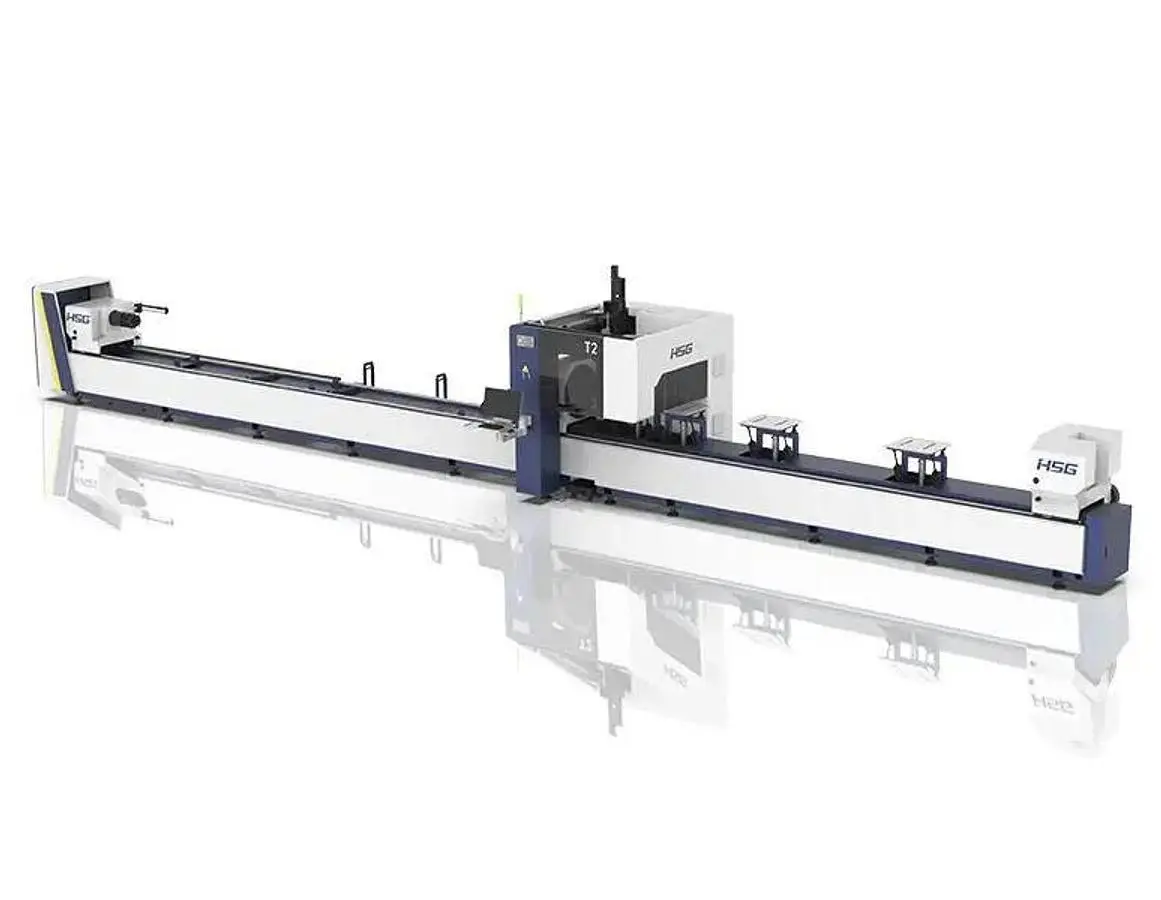

NEW HSG T2-9060S

Resonator Wattage: 3000 Watts
Tube processing ranges (round): Round tube: .78” - 9.45”
Tube processing ranges (rectangle): Rectangular tube: .78”≤each side≤9.45”
Tube processing ranges: .78”x.78”≤Angle Steel ≤7.87”x7.87” / 2”x1.5”≤Channel≤7.87”x3” / 2”x1.5”≤I beam≤7.87”*4” / 4”x4”≤HW Steel≤7.87”x7.87”
Bevel cutting range: 2”, thickness above .12”
Range of incoming materials for tube: 39”- 29.5’
Max. auto-unloading length: 29.5’（≥55”，straight cut for the last auto-unload part）
.: 29.5’（≥78”，bevel cut for the last auto-unload part）
Positioning precision of X/Y axis: ±0.0012”/3 ft
Repetitive positioning precision of X/Y axis: ±0.0012”
Speed of chuck: 100 RPM
Max. linkage speed: 328 FPM
Max. linkage acceleration: 1G
Maximum single tube weight: 660 lbs.
Tailing length: ≥0” （Only when the nesting material is reasonable can it be achieved）
Bevel angle: ±45°
Bevel cutting surface: V 、Y
Machine Dimensions: Approx. 72’x10’x10’H / Approx. 72’x16.5’x10’H w/ auto loader

Equipped with:
HSG Control
HSG Cutting Head
3kW Raykus Laser Source
HSG-X BUS Control System
HSG Mechanical Platform
Water Chiller
Transformer
Voltage Stabilizer
Nitrogen Proportional Valve
Air Compressor
Dust Collector
T2 Safety Protection Package
Air Conditioned Cabinet
Professional Chuck
Receiving Hopper

Optional Upgrades:
Please call for pricing
Bevel Cutting
Automatic Loading System
Air Compressor

The new 3000 Watt HSG T2-9060S CNC Fiber Tube Laser Cutting System offers advanced precision and efficiency for a wide range of applications. It is equipped with an HSG Control system, a 3kW Raycus Laser Source, and a HSG Cutting Head, ensuring high-quality performance in tube processing. The system features a versatile HSG-X BUS Control System, paired with a mechanical platform that includes essential components such as a water chiller, transformer, and voltage stabilizer.

This model supports various materials with tube processing ranges for round tubes between 0.78 to 9.45 inches and accommodates incoming materials up to 29.5 feet. The cutting system achieves high positioning precision of ±0.0012 inches per 3 feet and can handle a maximum single tube weight of 660 lbs., ideal for demanding industrial tasks. The machine operates efficiently with a chuck speed of 100 RPM and a maximum linkage speed of 328 feet per minute.

Optional upgrades for the T2-9060S include bevel cutting, an automatic loading system, and an additional air compressor, allowing for customized enhancements. The machine dimensions are approximately 72 feet by 10 feet by 10 feet high, with options for auto loaders. This cutting-edge system is designed for both accuracy and scalability, making it suitable for a variety of industrial applications.
