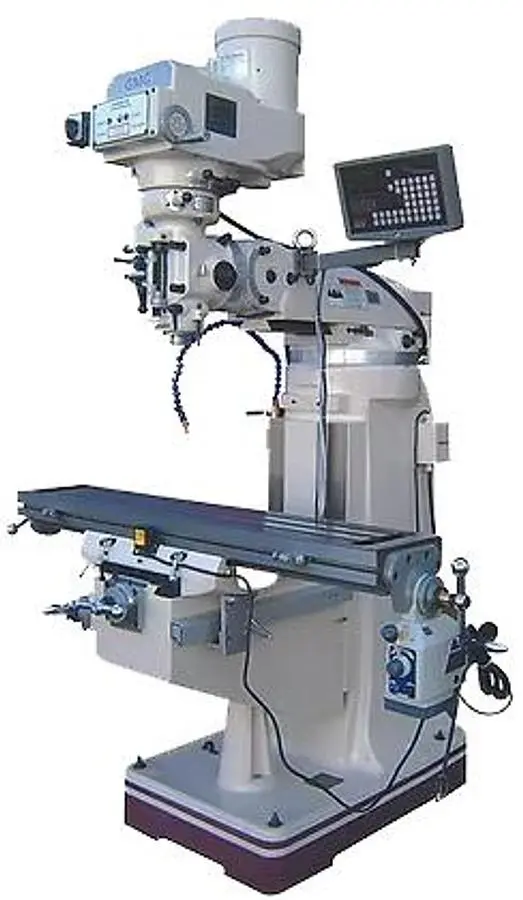

NEW GMC MACHINE TOOLS GMM-1050VT

Table Size: 10" x 50"
Table Load Capacity: 730 lbs.
X-Axis Travel: 33" (w/power feed: 28.75")
Y-Axis Travel: 12.5"
Z-Axis Travel: 16"
Max. Distance Spindle to Table: 1 11/16" to 17 5/8"
Distance Spindle to Column: 8 1/4" to 17 1/4"
Spindle Taper Type: R8
AC Spindle Motor: 3 HP, 220V/3 Phase (440V upon request)
Variable Spindle Speeds: 60 - 4200 RPM
Spindle Diameter: 3 3/8"
Spindle Travel: 5"
Ram Travel: 12"
Table T-Slot Size: 5/8" x 3 slots
Head Swivel: 90 Degrees
Head Tilting: 45 Degrees
Approx. Machine Weight: 2830 lbs.
Overall Dimensions (approx.): 66 x 63 x 87"

Equipped with:
2 axis CARMAR DRO installed on X & Y
Table power feeds X and Y installed
One shot lube
Draw bar
Rubber way covers
Tool box

Features:
Made in Taiwan
“Meehanite” casting
Turcite “B” coating on X/Y ways like CNC mills
ISO 9001 certified
Mechanical variable spindle speeds from 60-4,200 rpm
Heavy duty 3 HP AC spindle motor, 3 phase
Heavy Duty high grade castings
Hardened & ground ways, dovetail ways on X & Z , square ways on Y knee
Hardened & ground table and Ground table T-slots
Precision ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable ways
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
One shot lube system
front and rear rubber chip guards, and (1) manual draw bar
Tool box kit and leveling pads
Power source 220V OR 440V , 3 phase
One year industrial warranty for parts
