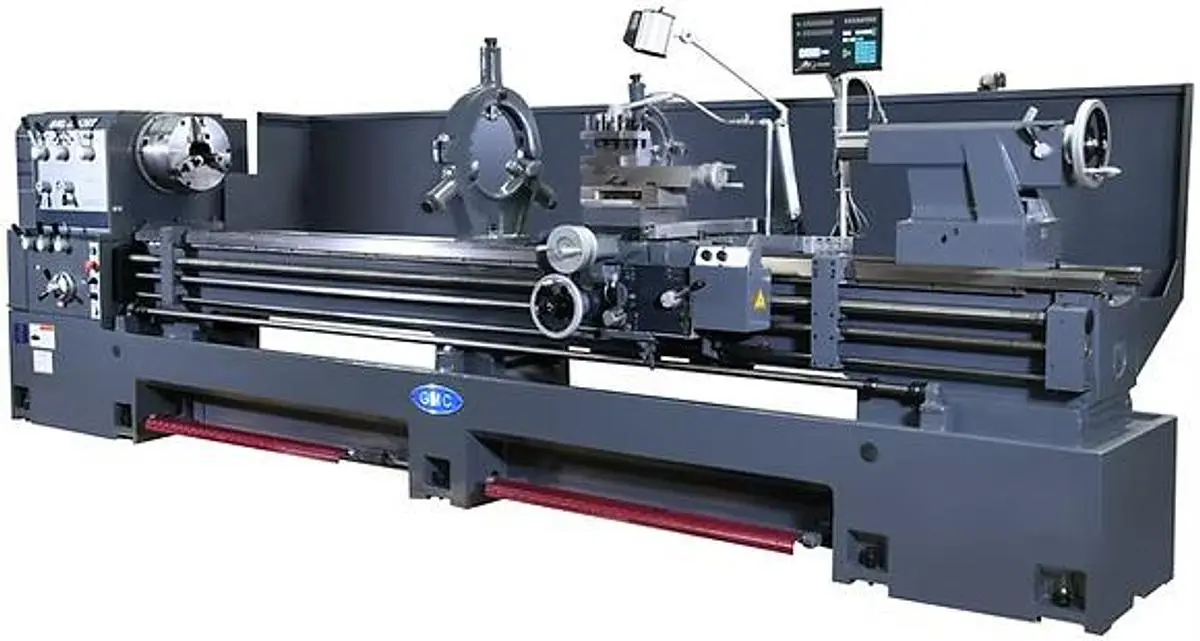

Product: Lathes
Max Swing Over Bed: 26"
Max Workpiece Length: 129"
Max Workpiece Weight: 2,000 Lbs.
Max Swing Over Cross Slide: 17 1/4"
Max. Swing in Gap: 35"
Bed Width: 15 3/4"
Spindle Bore: 4 1/8" (120mm), D1-11
Spindle Speed: 10 - 1,000 RPM / 12 Steps
Main Motor: 15HP, 220V/55A or 440V/30A, 3 phase
Coolant Pump: 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Overall Dimensions (approx.): 186x50x73
Weight (approx): 8,590 lbs.
Equipped with:
Free CARMAR DRO, installed
Rapid traverse on carriage on Longitudinal way
Automatic kick-out longitudinal carriage stop system

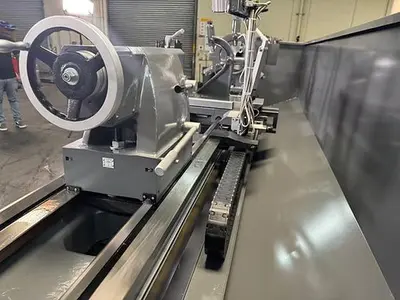

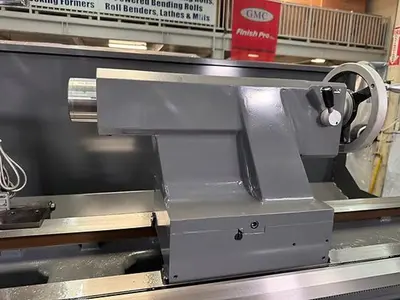

2-speed tailstock
12” 3-jaw chuck with top reversible jaws, direct mount
20” Face plate
12” steady rest with roller jaws
5” follow rest with roller jaws
Removable gap

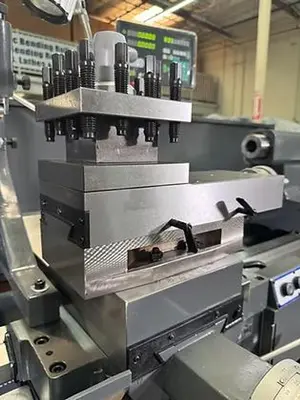

4-way tools post
Foot brake
Halogen Work light and coolant system
Splash guard on carriage
Dead center
Thread chasing dial
Reducing sleeve MT7/MT5 for spindle
Tool box and leveling pads
Standard Features:
Made in Taiwan
1 Year Warranty on Parts
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
ISO 9001 certified
Large spindle bore 4-3/4” (120mm)
Heavy Duty spindle D1-11
Heavy Duty main motor 15HP
16 spindle speeds from 10-1,000 rpm, 12 speeds
2-speed tailstock
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
*Disclaimer*
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
