Product: Milling Machines
Table Size: 9" x 49"
Table Load Capacity: 650 lbs.
X-Axis Travel: 35.5" (w/power feed: 31.5")
Y-Axis Travel: 12"
Z-Axis Travel: 17"
Spindle Taper Type: R8
AC Spindle Motor: 3 HP, 220V/10A (440V/5A upon request)
Variable Spindle Speeds: 70 - 4,300 RPM
Spindle Diameter: 3 3/8"
Spindle Travel: 5"
Ram Travel: 12"
Table T-Slot Size: 5/8" x 3 slots
Head Swivel: 90 Degrees
Approx. Machine Weight: 2,650 lbs.
Equipped with:
OEM DRO, 2 axis, installed
Table power feed X, installed
Way covers
One draw bar
One shot lube
Tool box
Features:
Made in Taiwan
“Meehanite” Casting
“Turcite B” Coating on X/Y ways
ISO 9001 certified
Coolant system included

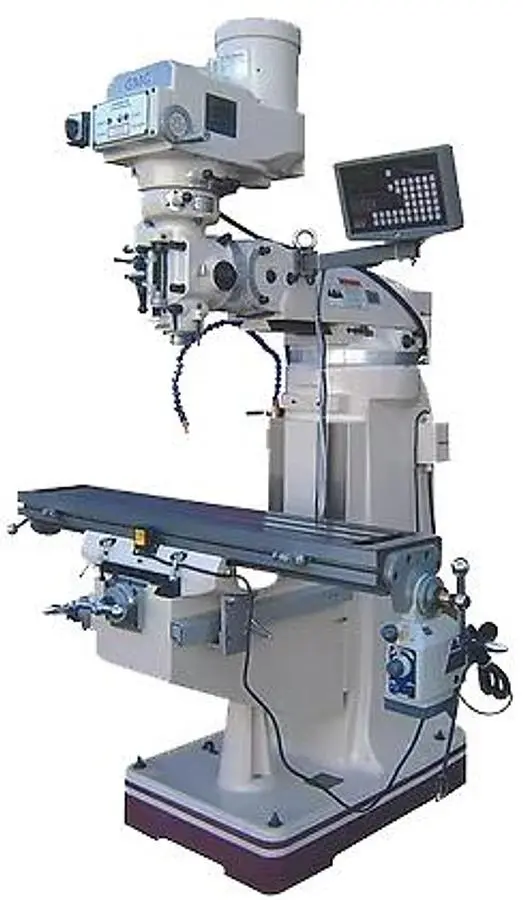

GMM-949V has variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion )
Heavy Duty “Meehanite” casting
Hardened & ground dovetail guideways
Hand scraped precision ways
Hardened & ground table and ground table T-slots
Precision ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable ways
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
One shot lube system
front and rear rubber chip guards
(1) manual draw bar
Tool box with tools
Power source 220V , 3 phase
One year industrial warranty for parts
