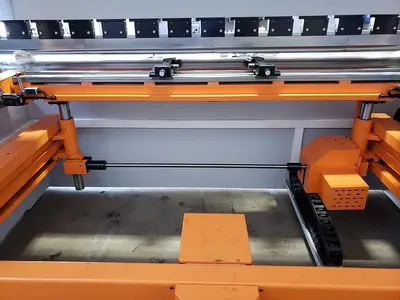

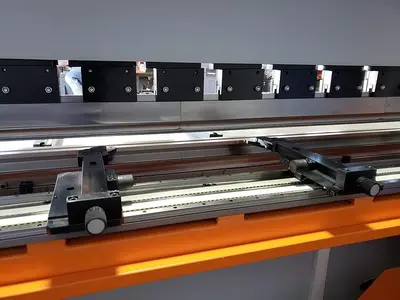

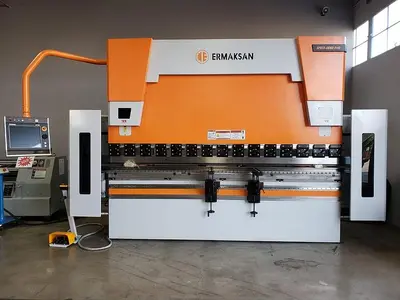

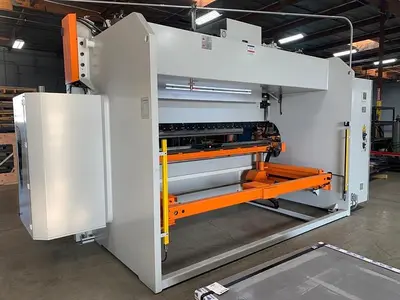

USED ERMAKSAN SB 3760-175

Capacity: 193 Tons
Overall Bending Length: 148"
Distance Between Housings: 128"
Y Rapid Speed: 7.09" /sec
Y Working Speed: 0.39" /sec
Y Return Speed: 7.28" /sec
X Axis Travel: 31.5
X Axis Speed: 13.78
Z1, Z2 Axis Speed: 39.37
Stroke: 10.8"
Daylight: 21.65
Throat: 16.1"
Dimensions (approx): 224.41 x 90.55 x 106.69"H
Weight (approx.): 28,114 Lbs.

Equipped With Standard Options:
Delem 66-T CNC Touch Control
Y1, Y2, X, R, Z1, Z2  Axes
Rolleri Tooling Package
American Type Riser Block
Foot Pedal
CNC Crowning
LazerSafe Laser Safety Guard
230-460V 60 Hz 3 Ph Dual Voltage
