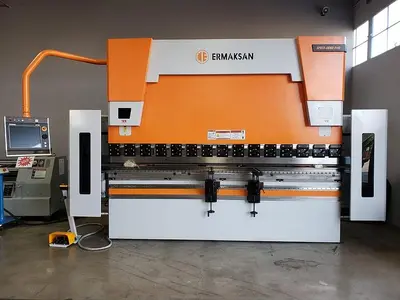

USED ERMAKSAN SB 3760-220

Capacity: 242 Tons
Overall Bending Length: 148"
Distance Between Housings: 128"
Y Rapid Speed: 7.09" /sec
Y Working Speed: 0.39" /sec
Y Return Speed: 7.28" /sec
X Axis Travel: 31.5
X Axis Speed: 13.78
Z1, Z2 Axis Speed: 39.37
Stroke: 10.8"
Daylight: 21.65
Throat: 16.1"
Dimensions (approx): 224.41 x 90.55 x 106.69"H
Weight (approx.): 28,114 Lbs.

Equipped With Standard Options:
Delem 66-T CNC Touch Control
Y1, Y2, X, R, Z1, Z2  Axes
Quick Release Universal Punch Holders
Tooling Package w/ 4-way Bottom Die
Foot Pedal
CNC Crowning
Laser Safe Laser Safety Guard

Available Upgrade:
Bottom Tool with Two Hardened Rods
Dual Voltage (230/460V, 60Hz, 3Ph)
Riser Block for U.S. Dies @ Additional Cost
