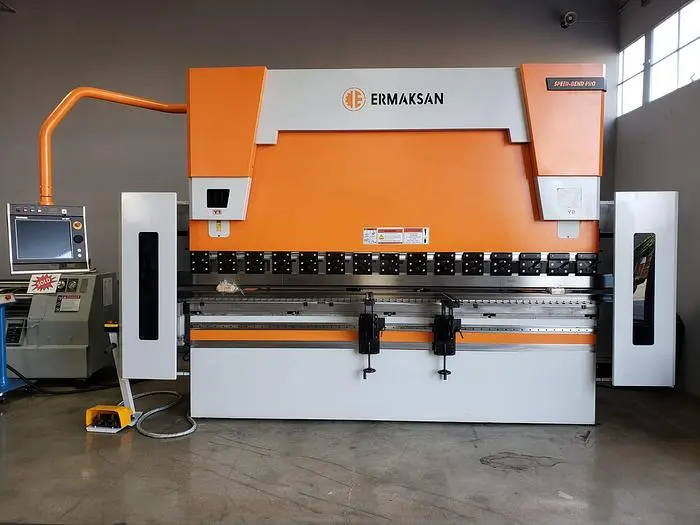

NEW ERMAKSAN SB 4270-175

Capacity: 193 Tons
Overall Bending Length: 168"
Distance Between Housings: 148.82
Y Rapid Speed: 7.09" /sec
Y Working Speed: 0.49" /sec
Y Return Speed: 7.48" /sec
X Axis Travel: 31.5"
X Axis Speed: 19.69" / sec
Z1, Z2 Axis Speed: 39.37
Stroke: 10.8"
Daylight: 21.65
Throat: 16.1"
Dimensions (approx): 246" x 86.61" x 105.5" H
Weight (approx.): 25,358 lbs.

Equipped With Standard Options:
Delem 66-T CNC Touch Control
Y1, Y2, X, R, Z1, Z2  Axes
Rolleri Tooling Package
American Type Riser Block
Foot Pedal
CNC Crowning
LazerSafe Laser Safety Guard
