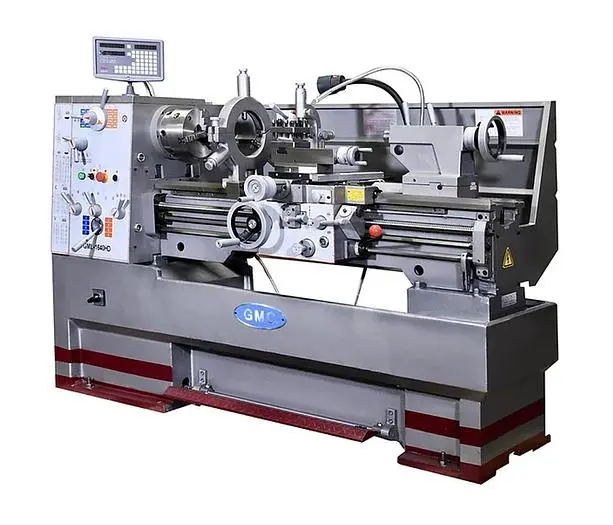

NEW GMC MACHINE TOOLS GML-1660HD

Ontario, Canada
329Listings|48Followers
Overview
Specs

Product: Lathes
Max Swing Over Bed: 16 1/16"
Max Workpiece Length: 60"
Max Swing Over Cross Slide: 10 1/4"
Bed Width: 10 1/4"
Spindle Bore: 2 1/16" D1-6
Spindle Speed: 45 - 1,800 RPM
Range of Longitudinal Feeds: 0.0018 - 0.07 IPR, 42 Kinds
Range of Cross feeds: 0.0009-0.03 IPR, 42 kinds
Main Motor: 6 HP, 220V/20A, 3 Phase
Coolant Pump: 1/8 HP, 220V, 3 Phase
Overall Dimensions (approx.): 100" x 32.2" x 56"H
Weight (approx): 4850 lbs.

Equipped With

Equipped with:
SINO DRO (installed)
Taper turning attachment (installed)
8” 3-jaw chuck with one set of reversible jaws
10” 4-jaw chuck
12” Face plate

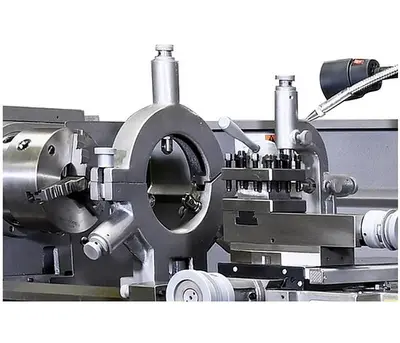

5 1/2” large steady rest with roller jaws (bearings)

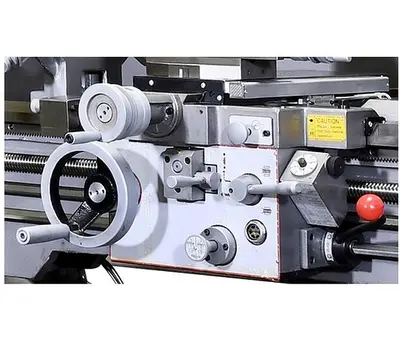

Oil pump on Apron for all guideways and leadscrews
2” follow rest with roller jaws (bearings)
Removeable gap
4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
(2) dead centers and (1) reducing sleeve MT6/MT4
Thread chasing dial
Tool box and leveling pads
1 Year Warranty on Parts
Standard Features:
1 year parts warranty for this model
ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP

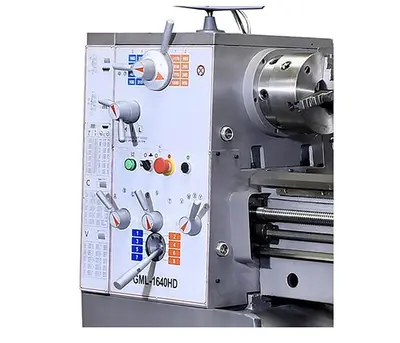

16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
