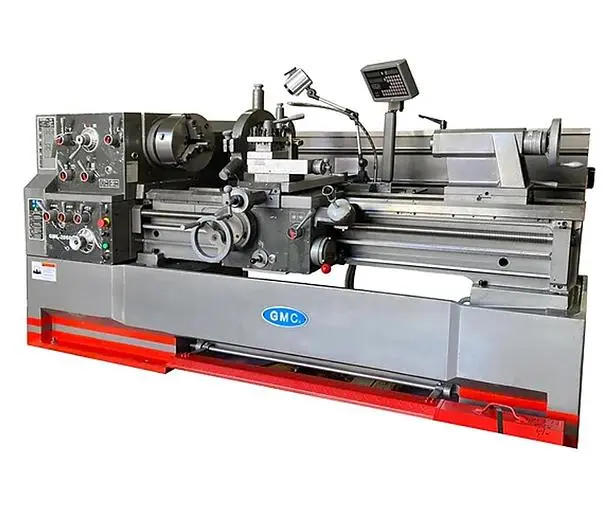

Product: Lathes
Max Swing Over Bed: 20"
Max Workpiece Length: 80"
Max Swing Over Cross Slide: 12 1/2"
Bed Width: 12"
Spindle Bore: 3 1/8" D1-8
Spindle Speed: 25-1,800 rpm / 12 steps
Range of Longitudinal Feeds: 0.0011-0.063 IPR, 42 kinds
Range of Cross feeds: 0.0003-0.018 IPR, 42 kinds
Main Motor: 10HP, 3 Phase, 220V/ 35A (Optional: 440V/ 20A)
Coolant Pump: 1/8 HP, 220V, 3 Phase (Optional: 440V)
Overall Dimensions (approx.): 128" x 43" x 59"H
Weight (approx): 6,350 lbs.
Equipped with:
ISO 9001 certified
Large spindle bore 3-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 12”
Heavy Duty main motor 10HP
16 spindle speeds from 25-1,800 rpm, 12 speeds

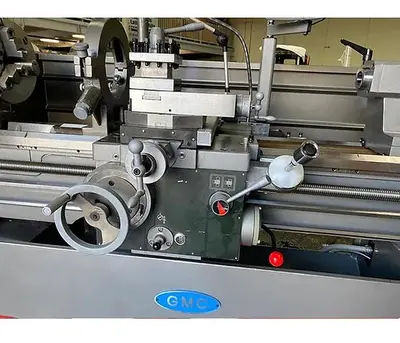

4-way rapid traverse on the carriage longitudinal and cross
60 kinds of inch threads, and 41 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Standard Equipment:
Free Taper turning attachment, installed

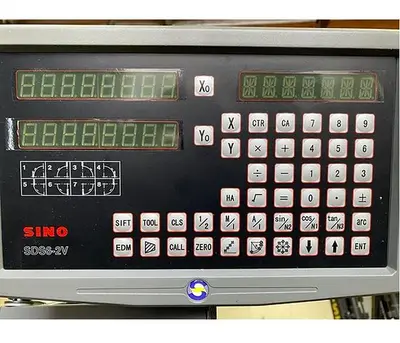

Free SINO DRO, installed
4-way rapid traverse on the carriage longitudinal and cross
Automatic kick-out longitudinal carriage stop system

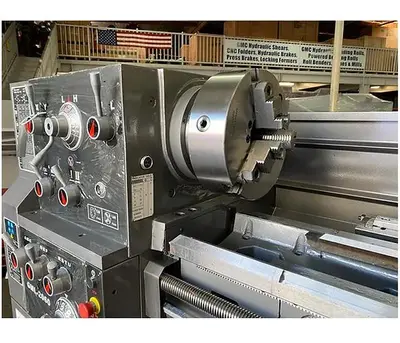

10” 3-jaw chuck with top reversible jaws, direct mount
12” 4-jaw chuck, direct mount
14” Face plate
1/2”-6” steady rest with roller jaws
7/8”-4-3/8” follow rest
Removeable gap
4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
Dead centers
Thread chasing dial
Reducing sleeve MT7?MT5 for spindle
Tool box and leveling pads
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
