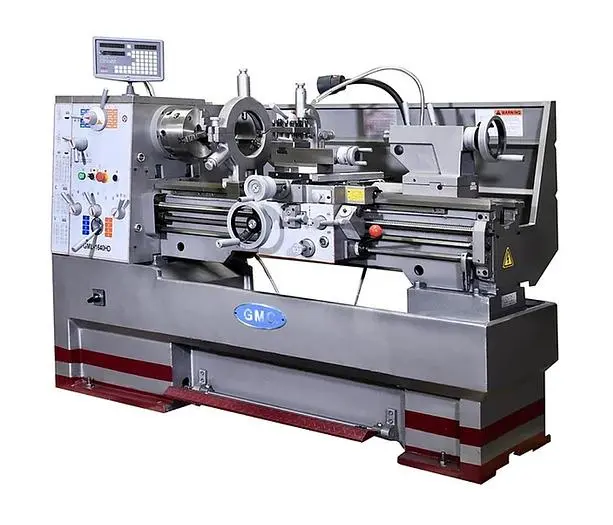

NEW GMC MACHINE TOOLS GML-1440HD
Overview
Specs
Product: Lathes
Max Swing Over Bed: 14 7/8"
Max Workpiece Length: 40"
Max Swing Over Cross Slide: 10 1/16"
Bed Width: 10 1/4"
Spindle Bore: 2 1/16" D1-6
Spindle Speed: 45 - 1,800 RPM
Range of Longitudinal Feeds: 0.0018 - 0.07 IPR, 42 Kinds
Range of Cross feeds: 0.0009-0.03 IPR, 42 kinds
Main Motor: 6 HP, 220V/20A, 3 Phase
Coolant Pump: 1/8 HP, 220V, 1 Phase
Overall Dimensions (approx.): 79" x 32.2" x 53"H
Weight (approx): 4,350 lbs.
Equipped With
Equipped with:
SINO DRO; Installed
Taper turning attachment; Installed
Metal chuck guard with safety shut down when lifting chuck guard
8” 3-jaw chuck with one set reversible jaws
10” 4-jaw chuck
12” Face plate

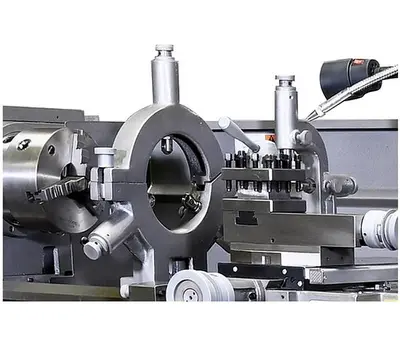

5 1/2” large steady rest with roller jaws

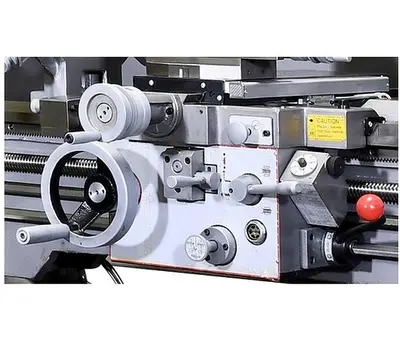

Oil pump on Apron for all guideways and leadscrews
2” follow rest
Removeable gap
4-way tools post
Foot brake
Coolant system
Halogen Work light
Full length splash guard
(2) dead centers and (1) reducing sleeve MT6/MT4
Thread chasing dial
Tool box and leveling pads
1 Year Warranty on Parts
