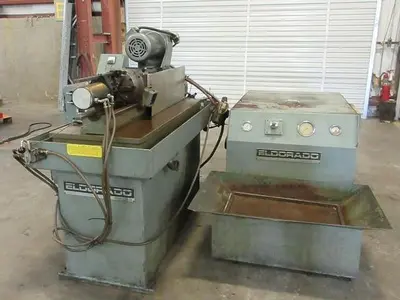

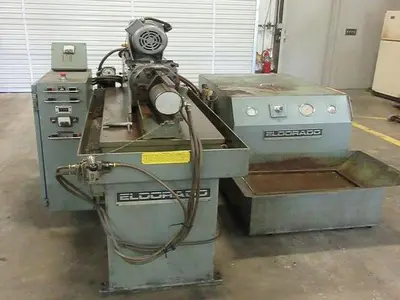

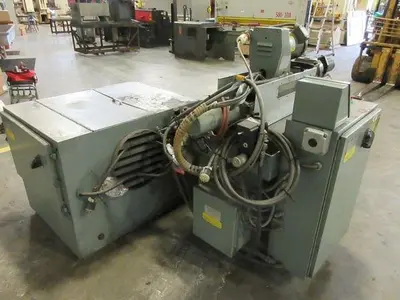

USED ELDORADO M75-1031 MEGA

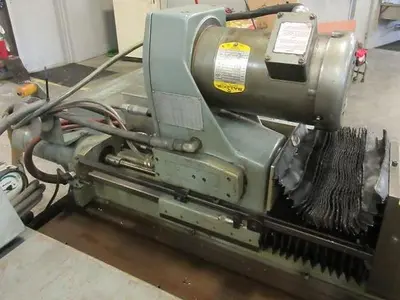

The Eldorado M75-1031 Mega Gun Drilling Machine is designed for precision drilling applications, with a capacity to handle drill diameters ranging from 0.053 inches to 0.750 inches and a maximum stroke length of 15 inches. Whether your project involves small or large-scale drilling tasks, its flexibility accommodates varying project requirements. The machine's spindle operates at speeds between 1,145 and 11,740 RPM, driven by a 3 HP motor, ensuring efficient performance and adaptability to diverse drilling needs.

In addition to its core capabilities, the machine features a ball screw feed system with a feed rate adjustable from 0.1 to 99.9 inches per minute and a jog rate of 200 inches per minute. This precise control is complemented by an advanced coolant system with a pressure range of 200 to 2,000 PSI, supported by a 7.5 HP coolant pump, which keeps the unit operating smoothly and reduces tool wear.

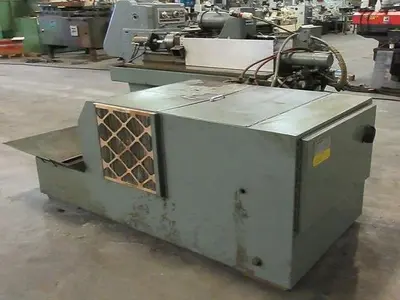

The Eldorado M75-1031 is compact yet robust, with overall dimensions of approximately 82 x 60 x 57 inches in height and weighing around 3,500 lbs., while the coolant system measures 74 x 40 x 35 inches. Its fixture table, measuring 14 x 12 inches, provides a stable platform for various components, making it an ideal choice for demanding industrial environments that require precision and reliability in gun drilling applications.
