USED 1999 HEYLIGENSTAEDT HEYNUMAT 21U/6000
Overview
Description

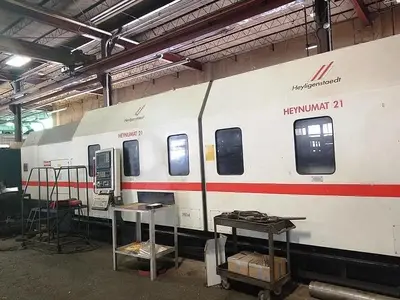

1999 Heyligenstaedt CNC Lathe, Model Heynumat 21U/6000, 18" & 20", 28" Swing, 238" B/C, 3 jaw chucks, 1800 rpm, 75 hp, Siemens 840D CNC, Excellent Condition ID17588
Specifications
Manufacturer: Heyligenstaedt
Model: Heynumat 21U/6000
Year: 1999
Condition: Used
Stock Number: 17588
Swing: 28.6"
Maximum turing diameter: 25.9"
Distance between centers: 238"
Spindle speed: 5-1800 RPM
Spindle bore: 5.5"
Spindle drive hp: 75
Turret Positions: 12
Chuck size: 18"
Number of jaws: 3

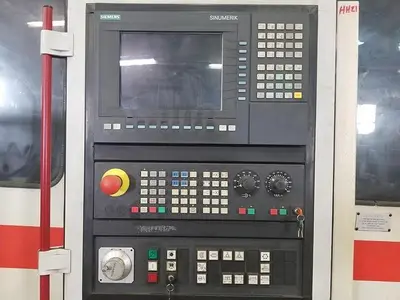

Ewuipped with: Siemens 840D CNC Control, Renishaw Probe Rohm 20" 3 Jaw Chuck (2) Rohm Programmable Follow Rests Programmable Tailstock Box Ways Coolant Chip Guarding, Renishaw Probe Rohm 20" 3 Jaw Chuck, (2) Rohm Programmable Follow Rests, Programmable Tailstock, Box Ways, Coolant Chip Guarding
Maximum Swing with in Circle of Tools: 35.6"
