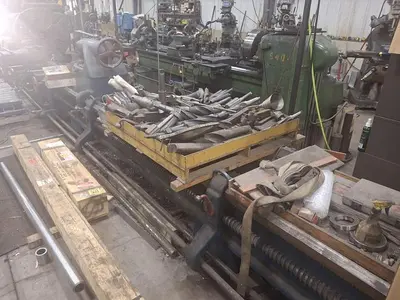

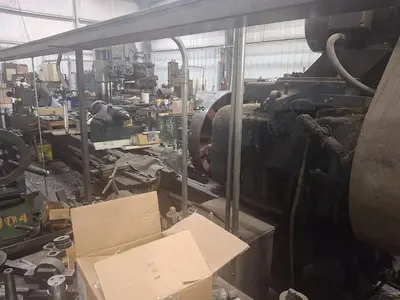

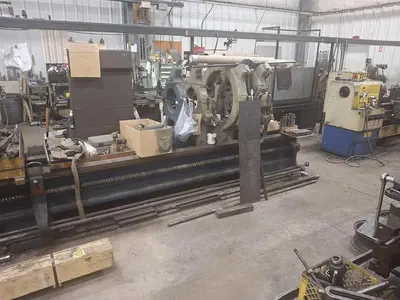

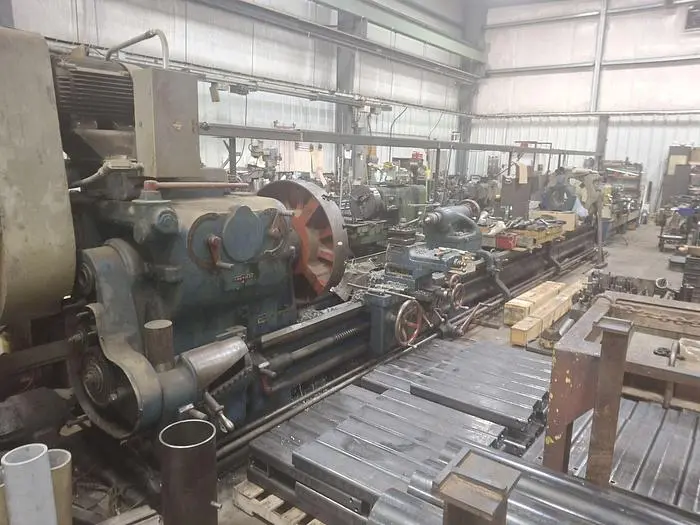

American Engine lathe, 40" x 300", 22" SOCS, 40 HP, 750 RPM, ID17808

The American Engine Lathe offers robust performance suitable for various machining needs. With a swing over bed ways of 42 inches and a swing over cross slide of 30 inches, this lathe is capable of handling sizable workpieces with precision. The distance between centers measures 288 inches, allowing for extended length operations when required.

Powered by a 40 HP spindle drive, this lathe achieves a maximum spindle speed of 750 RPM, ensuring efficient and smooth machining processes. Included with the machine are essential features such as a 36-inch 4-jaw chuck, four steady rests, a taper attachment, and threading capabilities, enhancing its versatility for different tasks.

Though previously used, this industrial equipment remains a dependable choice for a wide range of applications, combining the necessary strength and precision to meet demanding machining requirements.

Manufacturer: American
Year: 1955
Condition: Used
Stock Number: 17808
Swing Over Bed Ways: 42"
Swing over cross slide: 30"
Distance between centers: 288"
Spindle drive: 40 HP
Spindle Speeds: 750 RPM
Equipped With: 36" 4 Jaw Chuck, (4) Steady rests, Taper Attachment, Threading

36" 4 Jaw Chuck, (4) Steady rests, Taper Attachment, Threading
