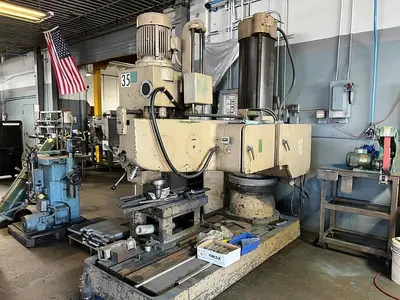

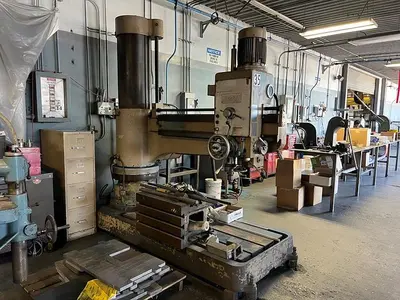

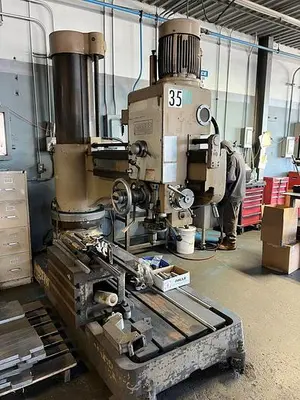

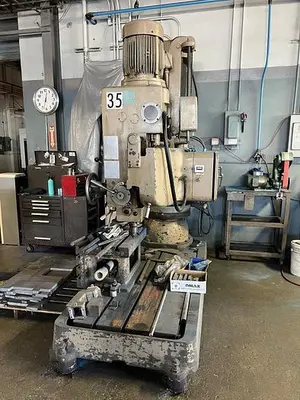

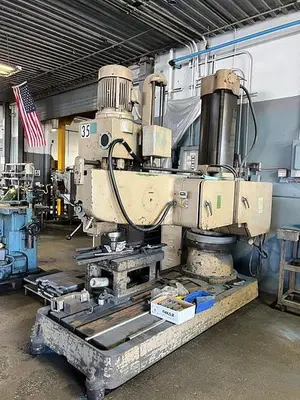

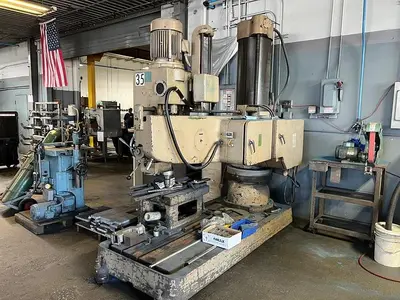

USED WILTON 5216001

Spindle Speed: 40 to 1920 RPM
Spindle Travel: 14 9/16"
Spindle Taper: #5 MT
Spindle Feeds: .002 to 0.040 IPR
Column Diameter: 17"
Drilling Capacity: Steel - 2 1/2", Cast Iron - 2 7/8"
Tapping Capacity: Steel - 2", Cast Iron - 2 3/8"
Distance Center of Spindle to Column: 13" to 63"
Vertical Movement of Arm: 50"
Spindle Motor: 7.5 HP
Arm Elevating Motor: 2 HP
Coolant Motor: 1/8 HP
Dimensions (approx): 106 x 48 x 111"H
Weight (approx): 11,220 lbs.
