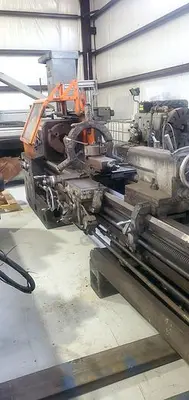

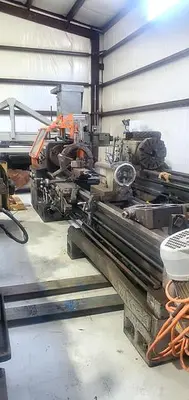

USED 1979 MAZAK 24

The Mazak Engine Lathe, Model 24, offers robust performance with a maximum swing of 28 inches and a swing over the cross slide of 15 inches. It supports long workpieces with a distance between centers of 144 inches. The machine’s 20 HP spindle motor can achieve speeds ranging from 8 to 1900 RPM, making it versatile for various turning operations.

Equipped with a 15-inch 3-jaw chuck and two steady rests (sizes 6 inches and 12 inches), this lathe is designed for stability and precision. The model also includes a Newall Digital Readout (DRO) for enhanced accuracy in operations. The spindle bore measures 4 1/16 inches, and the spindle nose features a D1-11 design, ensuring compatibility with different setups.

Weighing in at 19,500 pounds, the Mazak Engine Lathe demands substantial floor space of 72 inches by 203 inches. This used lathe is suitable for heavy-duty applications in various industrial settings, providing reliable and precise machining capabilities.

Manufacturer: Mazak
Model: 24
Year: 1979
Condition: Used
Serial Number: 13087
Stock Number: 17769
Maximum swing: 28"
Swing in Gap: 35"
Length of Gap: 18"
Swing Over Cross Slide: 15"
Distance between centers: 144"
Spindle drive motor: 20 HP
Spindle Speeds: 8-1900 RPM
Spindle bore: 4 1/16"
Spindle Nose: D1-11
Equipped with: 15" 3 Jaw Chuck, (2) Steady Rest (6" & 12"), Newall DRO
Machine weight: 19,500 lbs
Floor Space Required: 72" X 203"

15" 3 Jaw Chuck, (2) Steady Rest (6" & 12"), Newall DRO
