USED 1999 PEDDINGHAUS BDL 1250/3
Overview

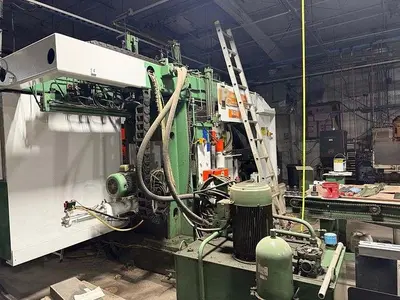

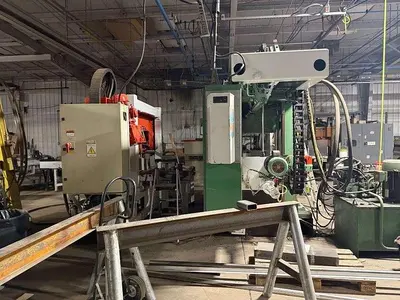

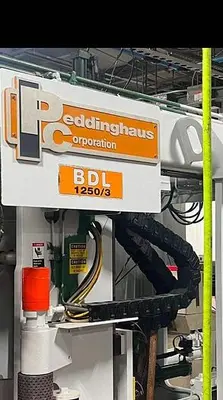

The Peddinghaus BDL 1250/3 CNC Drill Line is a robust and efficient solution for processing beams with precision. This used model features three drill spindles, allowing for simultaneous operations to enhance productivity. It accommodates a wide range of material sizes, from 3" to 50" in width and up to 24" in height, making it versatile for various industrial applications.
The drill line is powered by a 10 HP motor per spindle, with a spindle travel of 11 13/16" and a feed range of 1-12 IPM, enabling it to handle drill diameters from 5/16" to 1 9/16". The flange advance speed reaches up to 66 FPM, ensuring efficient throughput. Additionally, the hydraulic clamping system, with a force range of 830 to 26,500 lbs, secures materials firmly during processing, while the 25 HP hydraulic power supply ensures reliable operation.
For added versatility, this model offers an optional cut-off saw. This feature, combined with precision engineering and durability, makes the Peddinghaus BDL 1250/3 an excellent choice for businesses looking to enhance their beam drilling capabilities.
Specs
Manufacturer: Peddinghaus
Model: BDL 1250/3
Year: 1999
Condition: Used
Stock Number: 17678
Number of Drill Spindles: 3
Material Width: 3" - 50"
Material Height: 24"
Material Length Minimum: 62"
Drill Motor HP: 10 HP
Drill Spindle Travel: 11 13/16"
Spinlde Feed Range: 1-12 IPM
Drill Diameter: 5/16" to 1 9/16" Diameter
Flange Advance Speed: 66 FPM
Hydraulic Clamping Force: 830 to 26,500lbs
Hydraulic Power Supply Horsepower: 25 HP
Optional Equipment: Cut off saw
