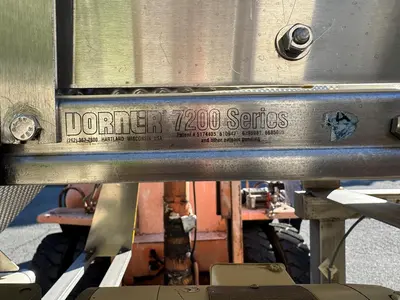

USED DORNER 7200 SERIES

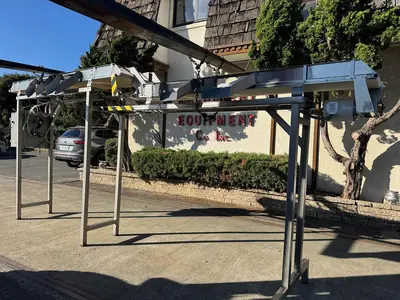

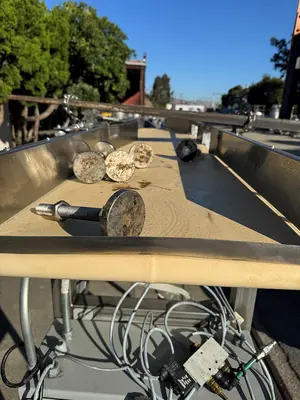

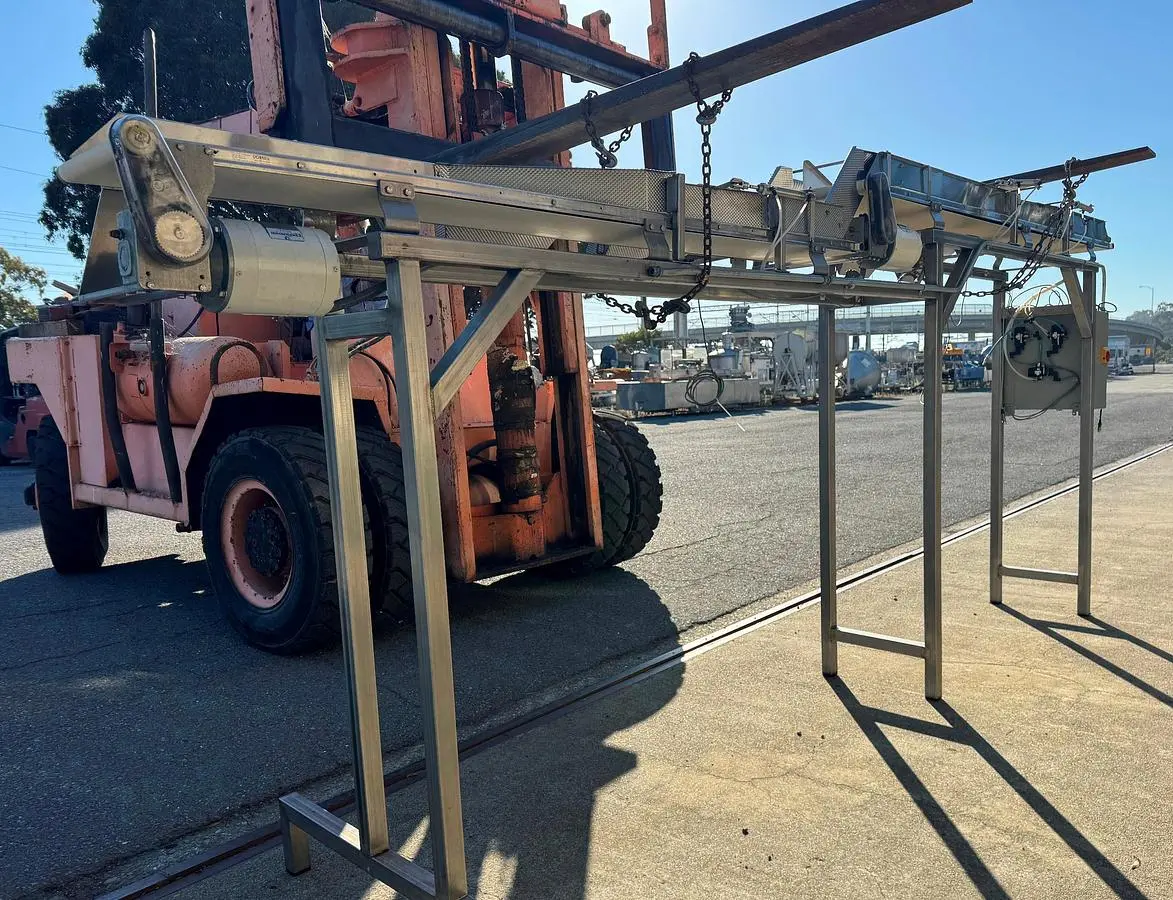

Dorner 7200 Series belt conveyor system featuring a dual drop-down configuration with 12" wide flat rubber belts. The top conveyor measures 7-1/2' long and stands 76-1/2" high to the belt surface. It includes (2) side discharge gates, each 12" wide x 3" high, equipped with dimpled surface flap gates and stainless discharge chutes positioned 69-1/2" from the floor. The lower conveyor measures 8-1/2' long and stands 69" high, featuring the same dual discharge setup with chute heights at 64" from the floor. System includes a control box with variable speed controllers and integrated electrical components for both conveyors.

Stock Number: 5991588
Manufacturer: Dorner
Model: 7200 Series
Measurements: 12" Wide x 16' Overall Length
Belt Material: Flat Rubber
Configuration: Dual Drop-Down with Side Discharge Gates
Discharge Gates: (2) per Conveyor, Dimpled Flap Style

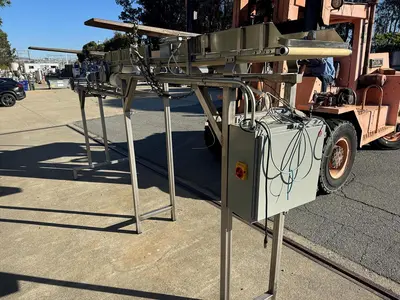

Electrical: Control Box with Speed Controllers
Basis: FOB
