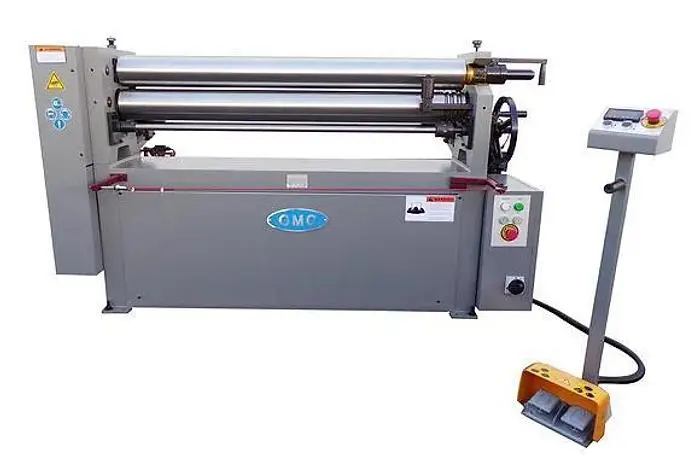

NEW GMC PBR-0412E

This machine has a 2HP Motor, rated at 220V/440V three phase. Power bending roll up/down with push button & display.

Standard Features

SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts

Standard Included Equipment

Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

Optional Equipment
Safety fence for enclosure of the back side of the machine - $1,150.00

Capacity: 4'3" x 12Ga.
Capacity Stainless: 4’3” x 16Ga
Roll Dia: 3 1/2"
Min. Bending Dia. Inch: 4 3/4"
Pre- Bend Inch: 0.07"
Rolls Speed ft/min: 20
Rolls Opening: 1/2"
Main Motor: 2HP 220V Three phase
Weight: 1,950 lbs.
Dimensions (w x l x h): 78" x 30" x 50"
