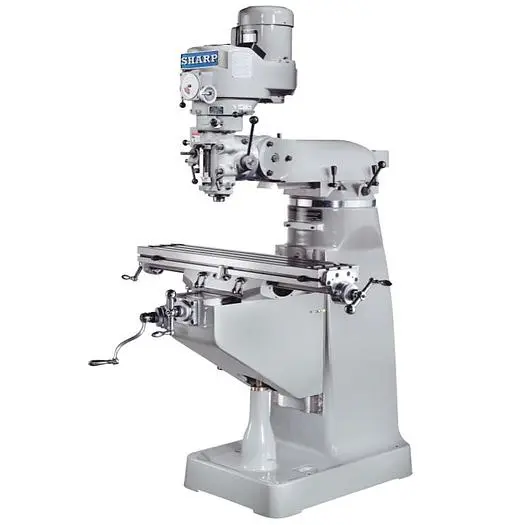

This model has many unique features compared with most of the other similar machines on the market.
The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.
Tapered gibs installed on the ways allows easy adjustment for long term usage..
The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
9 x 42 ins table, 12 x 30 in. travel
R-8 spindle, 3 hp , variable speed (60-4,500 rpm)
Spindle runout of no more than 0.0002” TIR
Hard chromed ways provide long wear resistance
Head tilt side to side, up and down
One shot lubrication with back flow valve
Tapered gibs for adjustment
Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.
Standard Accessories
One Shot Lube System
Hard-Chromed Ways
Front and Rear Rubber Way Covers
Tool box with tools
Wired 220V or 440V.
Table Size: 9" x 42"
T- Slots: 3
Table Travel X: 30"
Table Travel Y: 12"
Quill Travel Z: 5"
Knee Travel Vertical: 16"
Spindle Center to Column: 6.75-18.5"
Spindle Nose to Table Top: 2.12-18"
Spindle Nose Taper: R-8
Spindle Speed Range: 60-4500 RPM
Spindle Motor HP: 3
