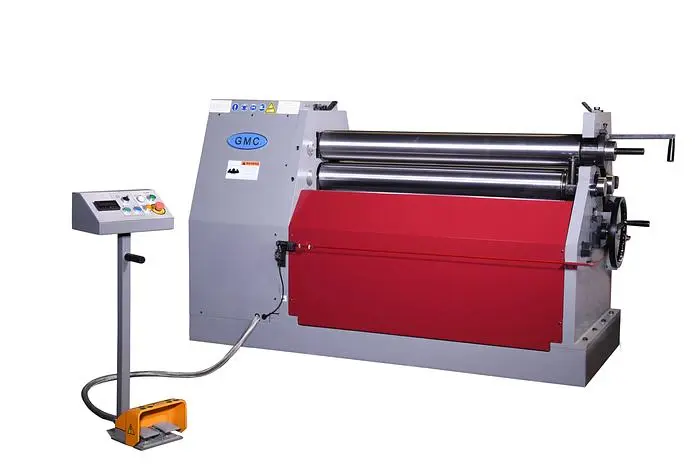

NEW GMC HBR-0625

GMC Model # HBR-0625, 80” x ¼” , 5-1/2 HP INITIAL PINCH HYDRAULIC PLATE
BENDING ROLL MACHINE

Standard Features:
·       ISO 9001 certified
·       Taiwan Machines
·       All three rollers are driven
·       All three rollers are hardened, up to 50-52 HRC
·       Easy swing –out top roller
·       Standard cone attachment installed
·       1 each LED indicator for bending roll position
·       Safety line all around the machine for emergency stop
·       Heavy Duty all steel welded machine construction
·       German Hydraulic logic system centrally located and quiet
·       Bending roll is hydraulic powered up/down & tilting adjustment
·       Planetary reduction gear and pump
·       All three rolls are made of high grade alloy steel
·       All rolls run forward and reverse
·       Safety type foot pedal control
·       Overload protection and disconnect switch
·       Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts

Main Motor: 5-1/2 HP 220/440v 3 ph
Amp. Draw: 20A/220V, 10A/440V
Machine Weight: 6050 lbs
Shipping Weight: 6150 lbs
Machine Dimensions: 118x38x58''
Shipping Dimensions: 144x41x60''
Oil Tank Cap: 12 Gal. Hydraulic Oil Shell #68HD
Roll Length: 6'8''
Roll Dia.: 7-1/2''
Pre-Bend: 0.18''
Mild Steel (hot roll) tensile 60,000 PSI: 6'x1/4''
Stainless Steel , tensile 85,000 PSI: 6'x3/16''
Soft Aluminium, tensile 28,000 PSI: 6'x3/8''
Min. thickness: 22Ga
Min. roll dia.: 8-1/2''
