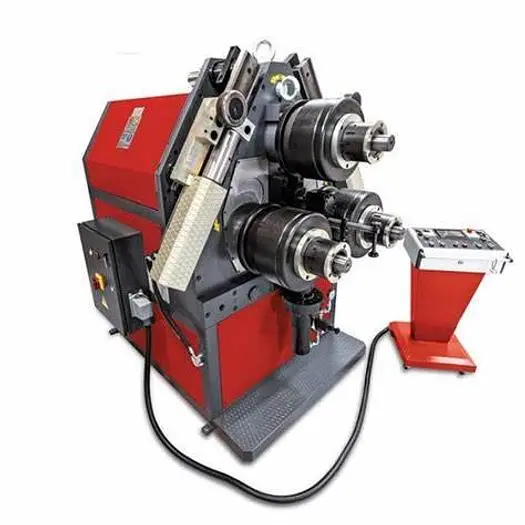

▪ APK 121 ANGLE BENDING ROLL
▪ One set standard rolls
▪ All-steel (St-52) construction body
▪ Shafts made of special steel, hardened and ground
▪ Manual lubrication
▪ Hydraulic guide rolls adjustable in 2 directions
▪ Bottom rolls hydraulically moveable up and down
▪ Digital display for bottom rolls
▪ Separate and moveable control panel
▪ Horizontal & vertical working position
▪ The rolls are driven by a hydraulic motor + reducer and gear system.
Hydraulic Guide Rolls Included
Optional Features
Price:
AK400 7-axis CNC Controller $17,561
Max. section modulus: in3 4.3-7.3
Roll Diameter: 15.35''
Top shaft diameter: 4.72''
Bottom shaft diameter: 4.72''
Motor Power: 20 HP
Bending Speed: 13 ft./min
Dimensions (w x l x h): 4.8' x 6.5' x 6.7'
Weight: 10.405 lbs
